THE PCB SBBS AND THE CONNECTOR OF THE LAMP

Step 1

CHECKING ALL CONNECTORS ON THE PCB SBBS

Check the different low voltage values on the connectors which control the movement of the chair.

Check the correct values on the connectors and selection signal of the suction.

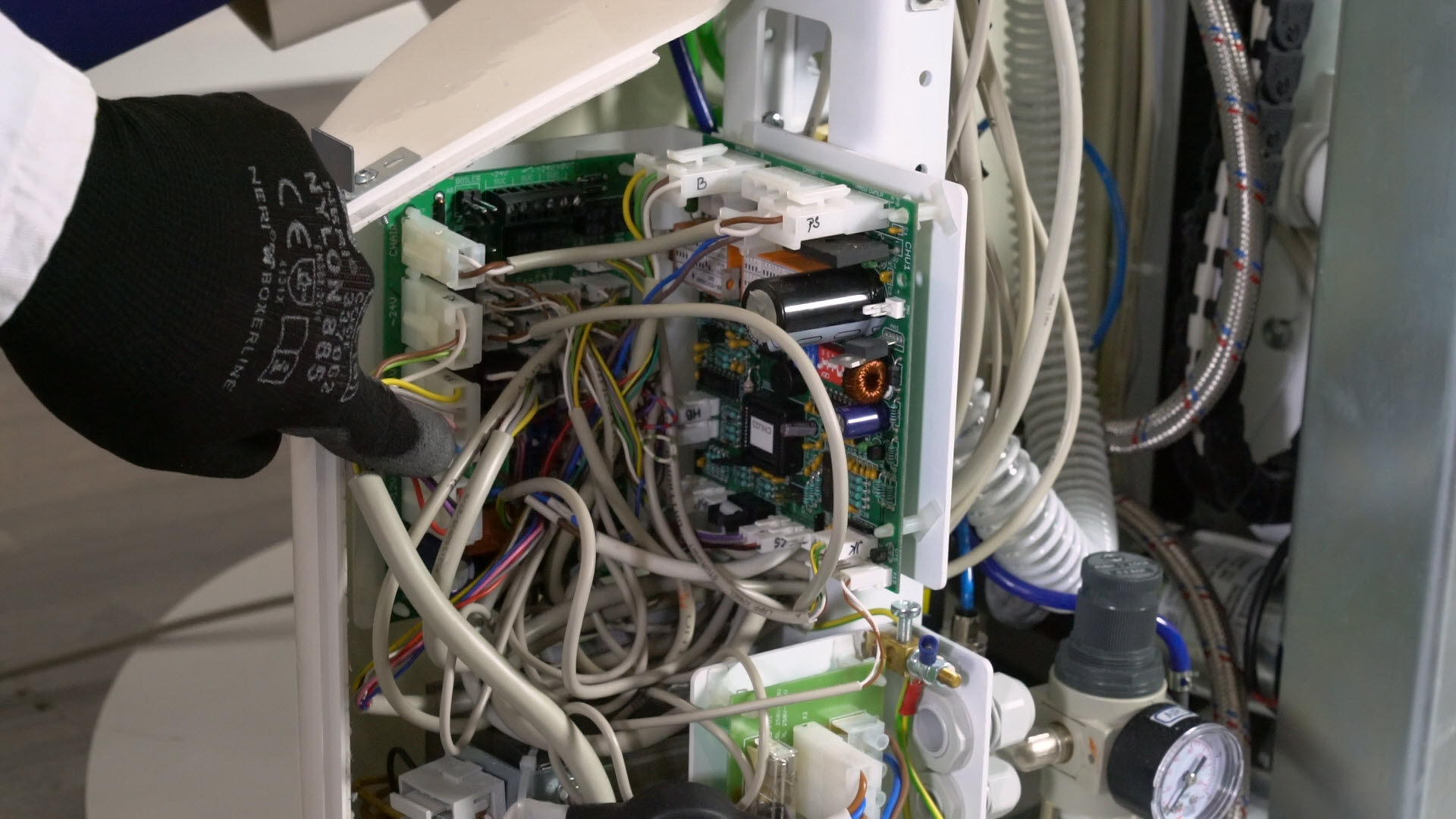

Check the voltage on green connector of the lamp on the PCB SBBS.
