SPITTOON BLOCK COVER

Description

Use this guide to remove the spittoon block cover. to reassemble the spittoon block covers, follow these instructions in reverse order.

Step 1

REMOVING THE SPITTOON BLOCK COVER

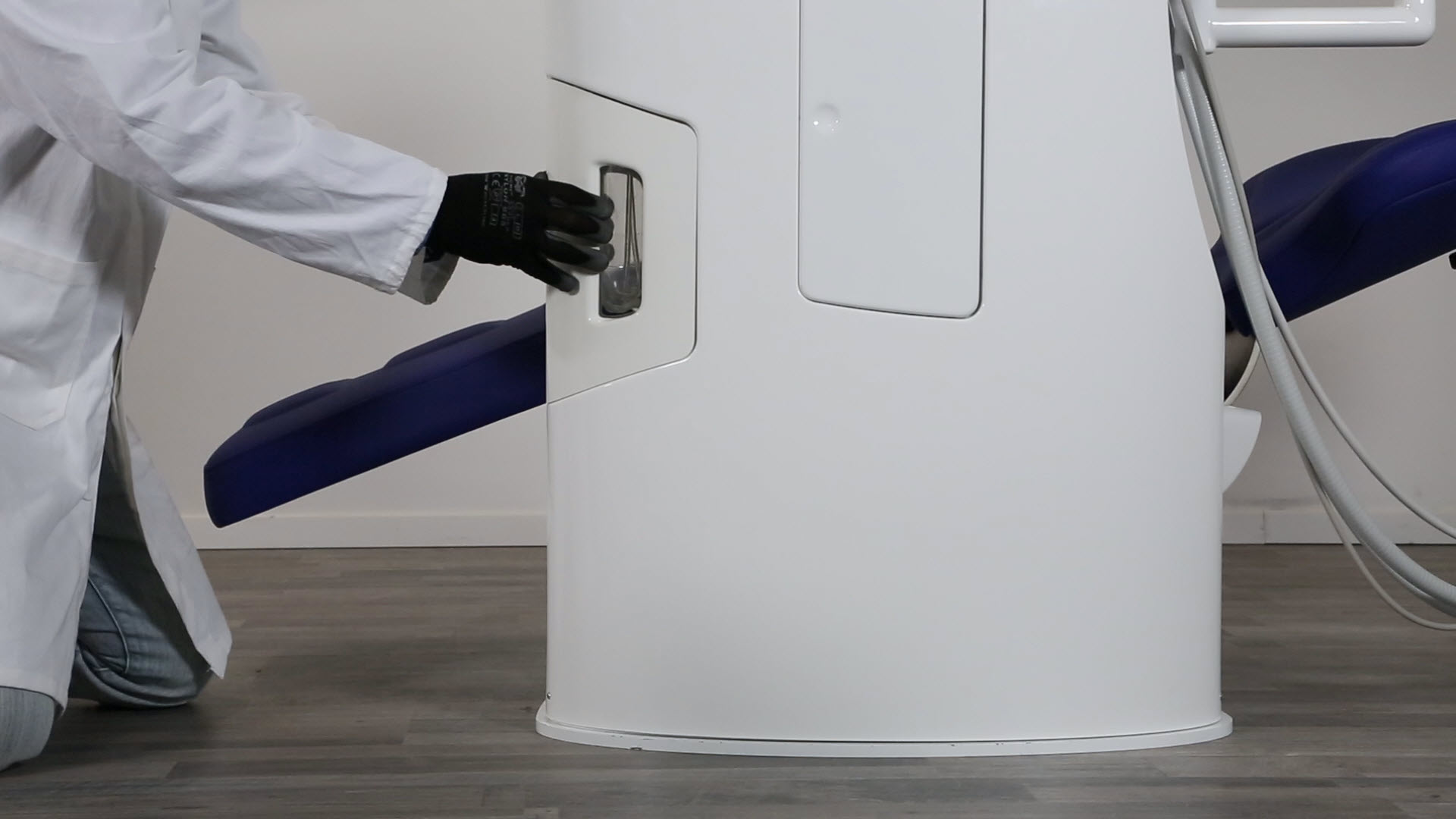

Remove the bottles cover

Step 2

REMOVING THE SPITTOON BLOCK COVER

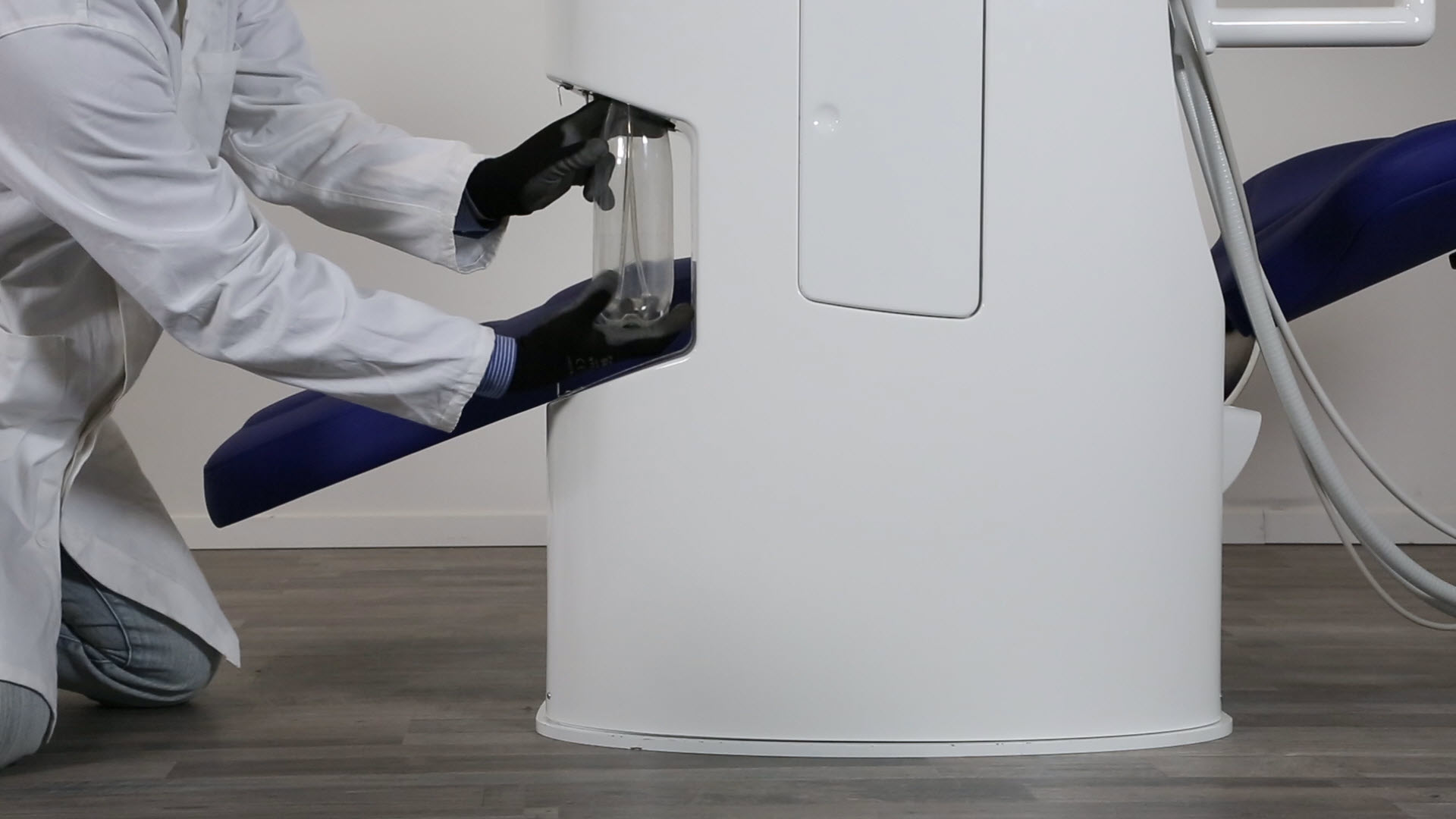

Unscrew the water bottle

Step 3

REMOVING THE SPITTOON BLOCK COVER

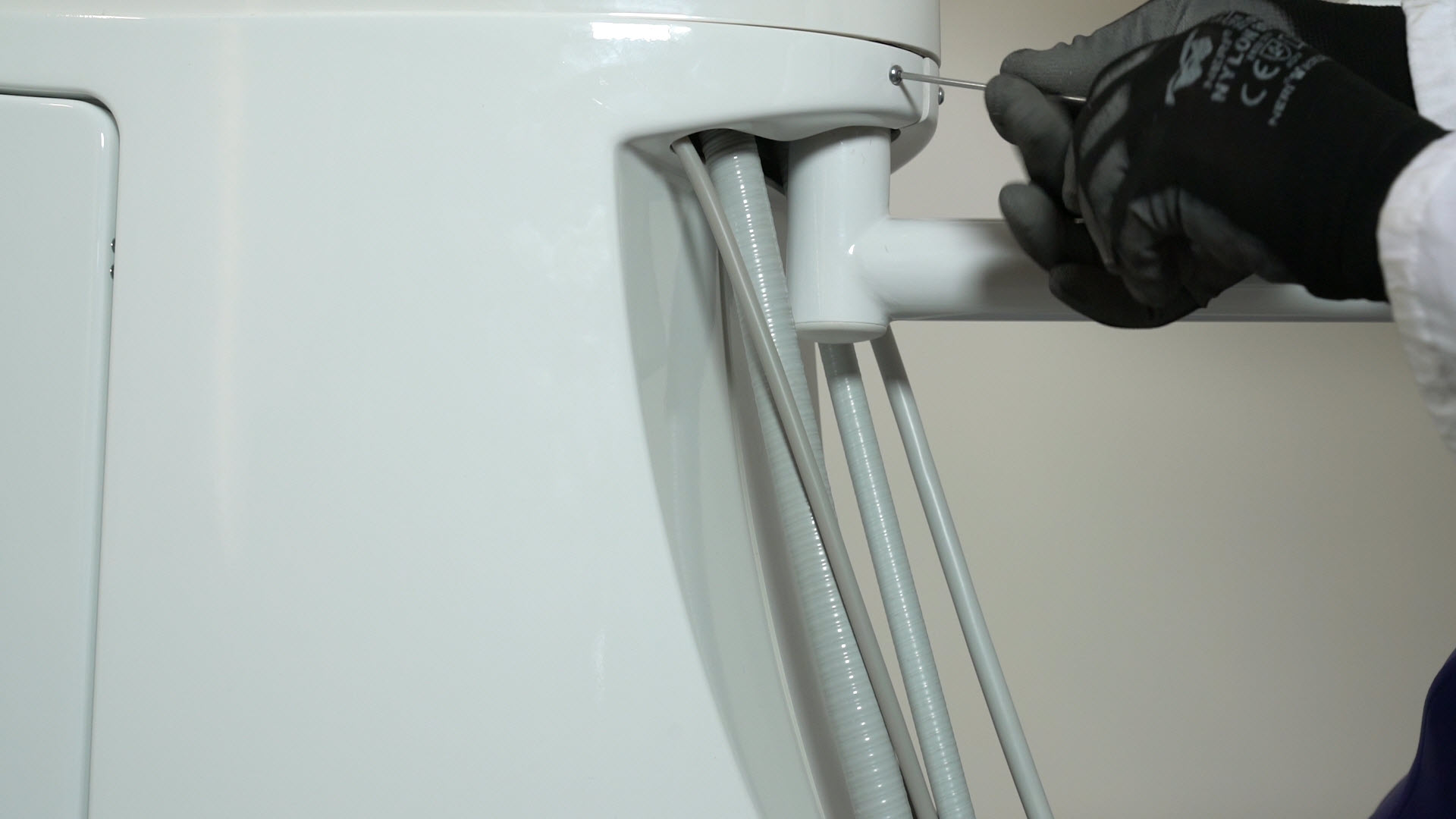

Remove the upper lateral screw

Step 4

REMOVING THE SPITTOON BLOCK COVER

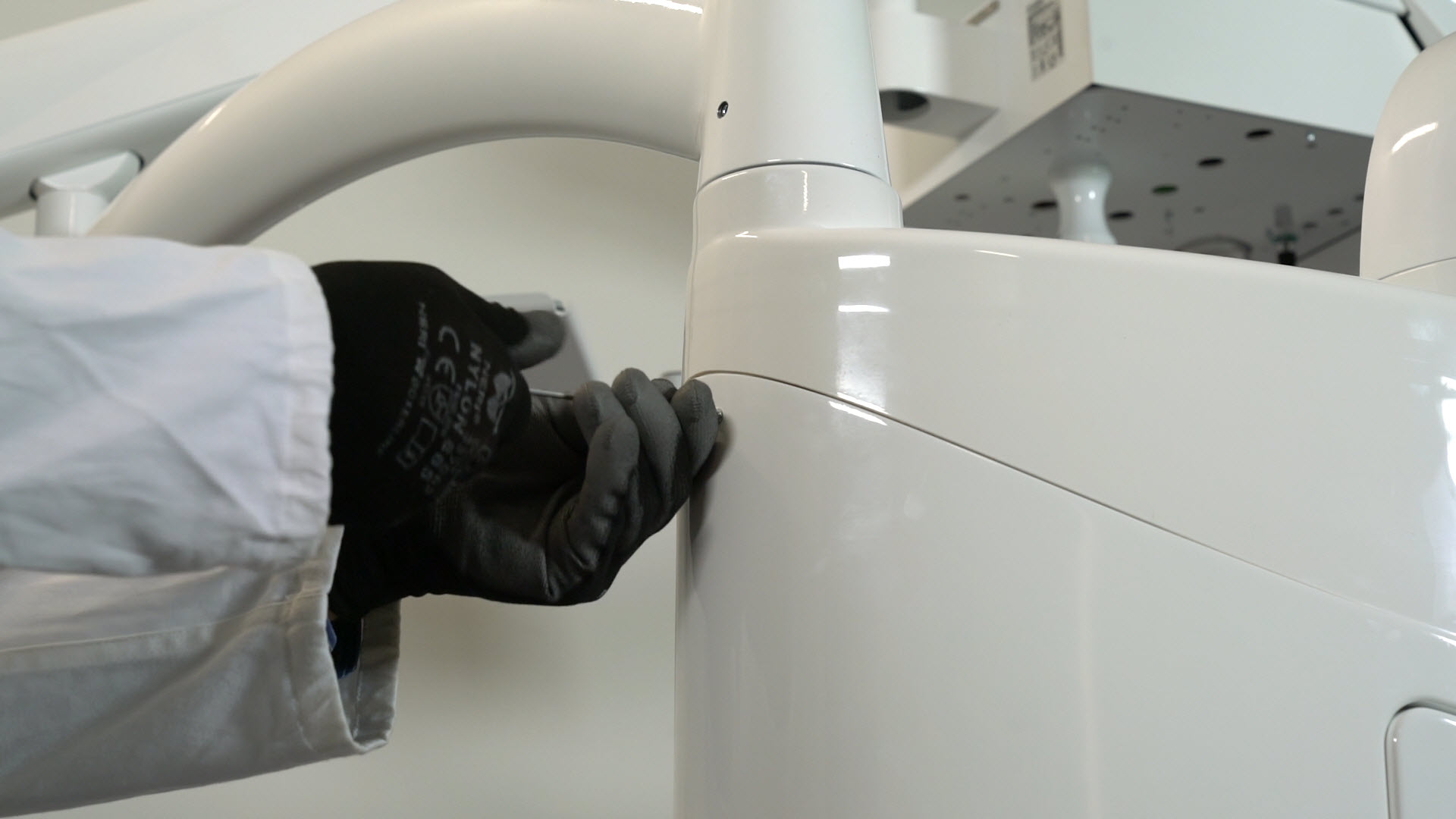

Remove the upper bottles screw

Step 5

REMOVING THE SPITTOON BLOCK COVER

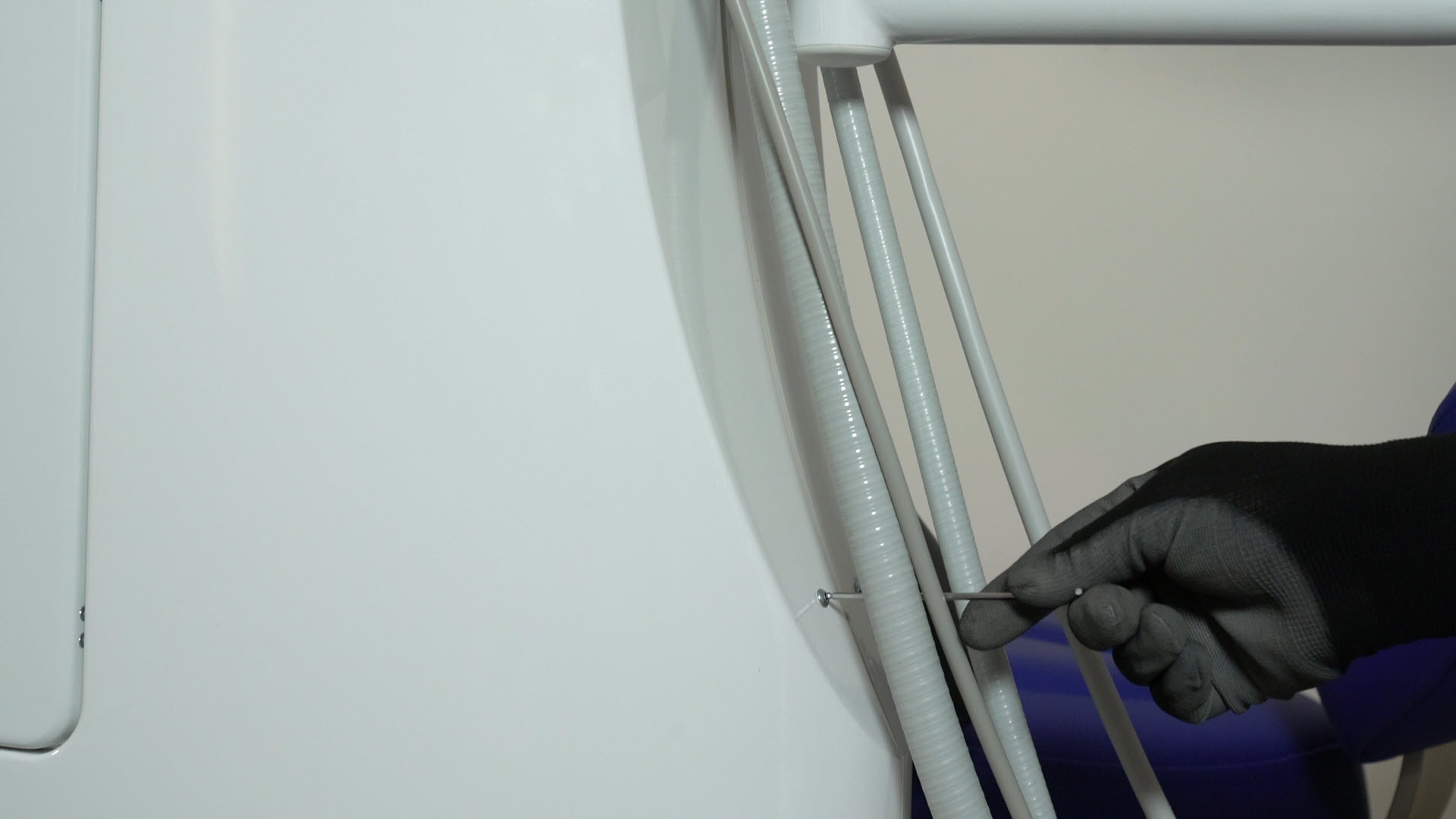

Remove the lower lateral screw

Step 6

REMOVING THE SPITTOON BLOCK COVER

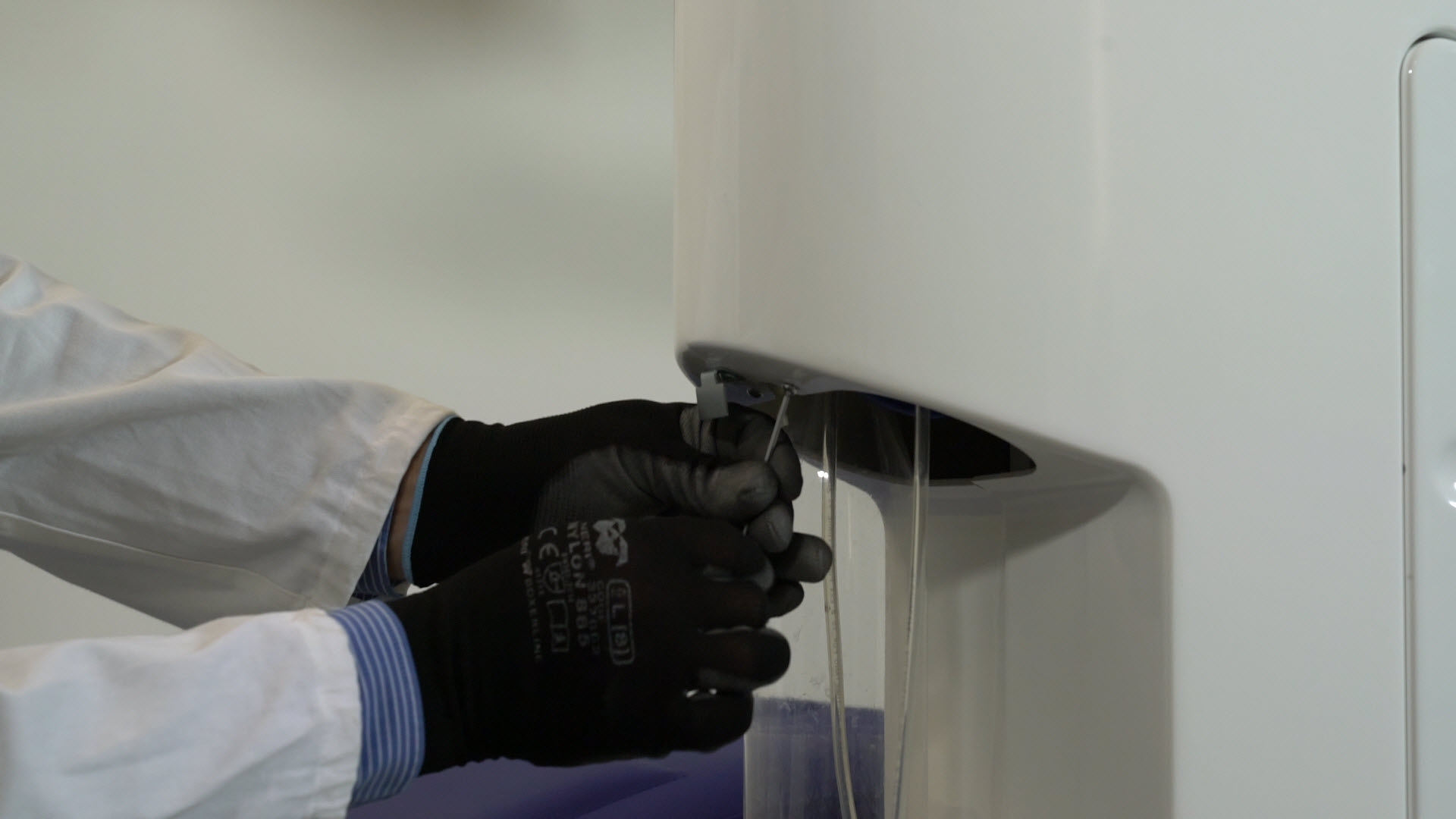

Remove the upper lateral screw on the other side

Step 7

REMOVING THE SPITTOON BLOCK COVER

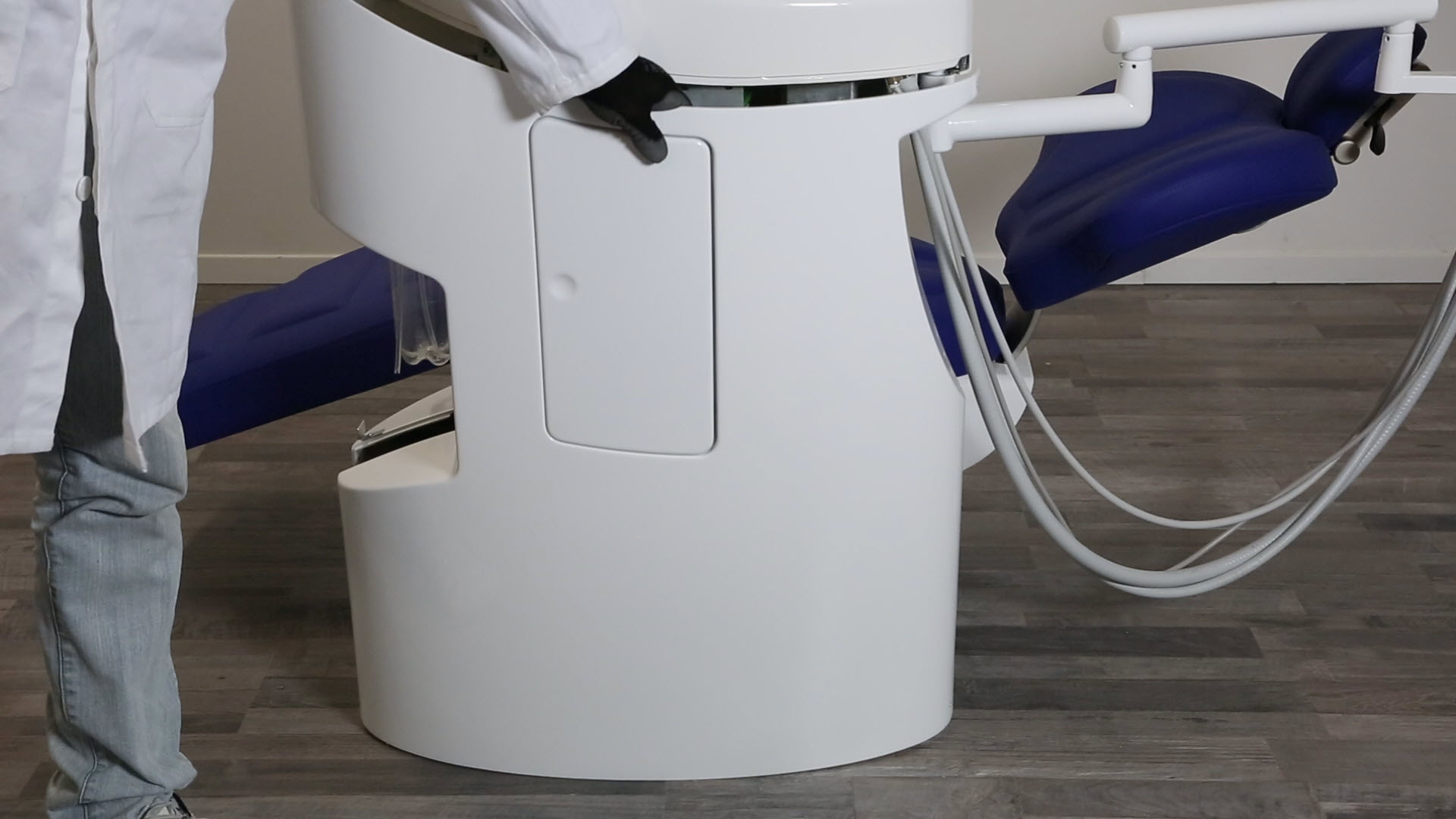

Remove the other lateral screw

Step 8

REMOVING THE SPITTOON BLOCK COVER

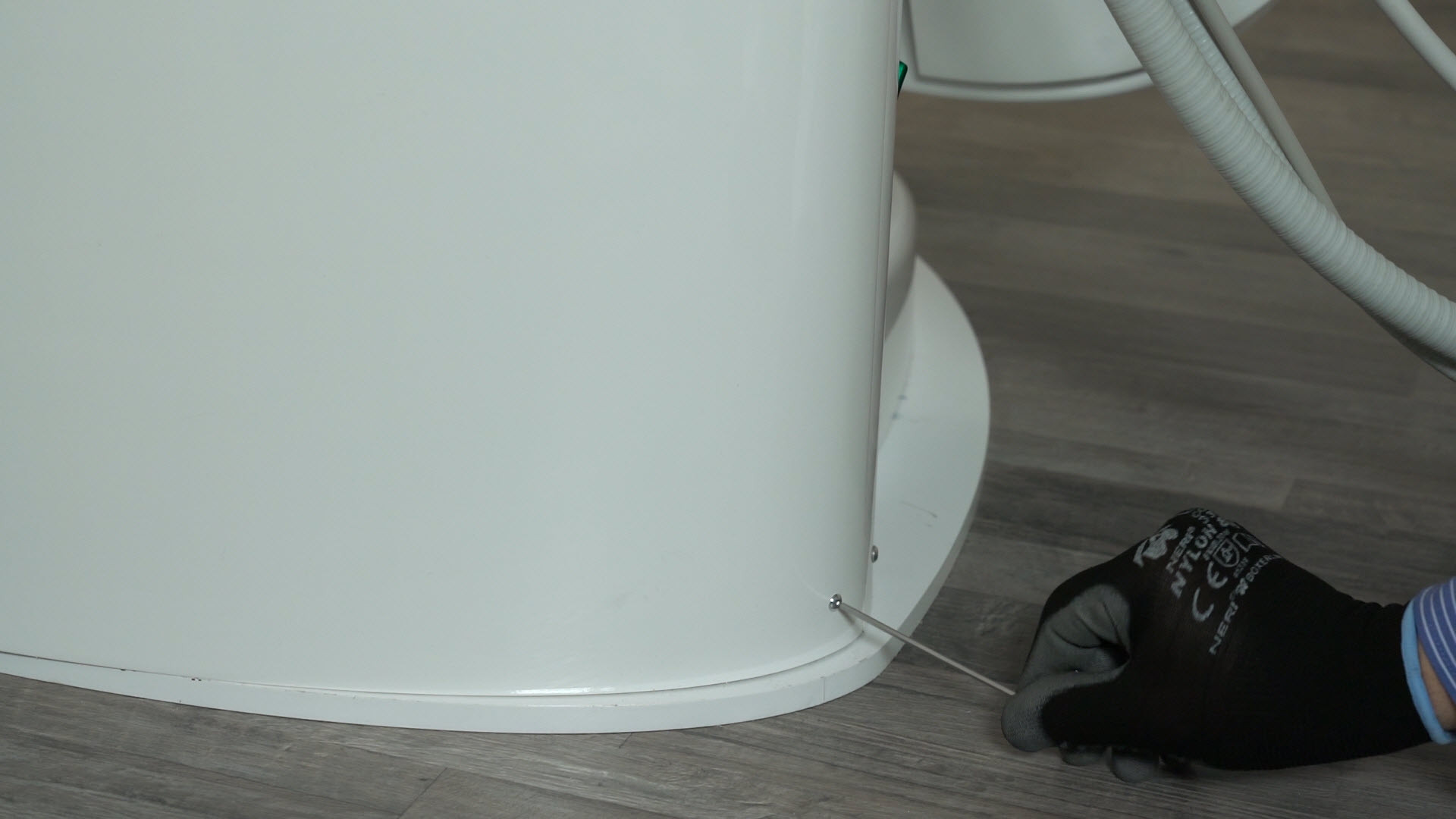

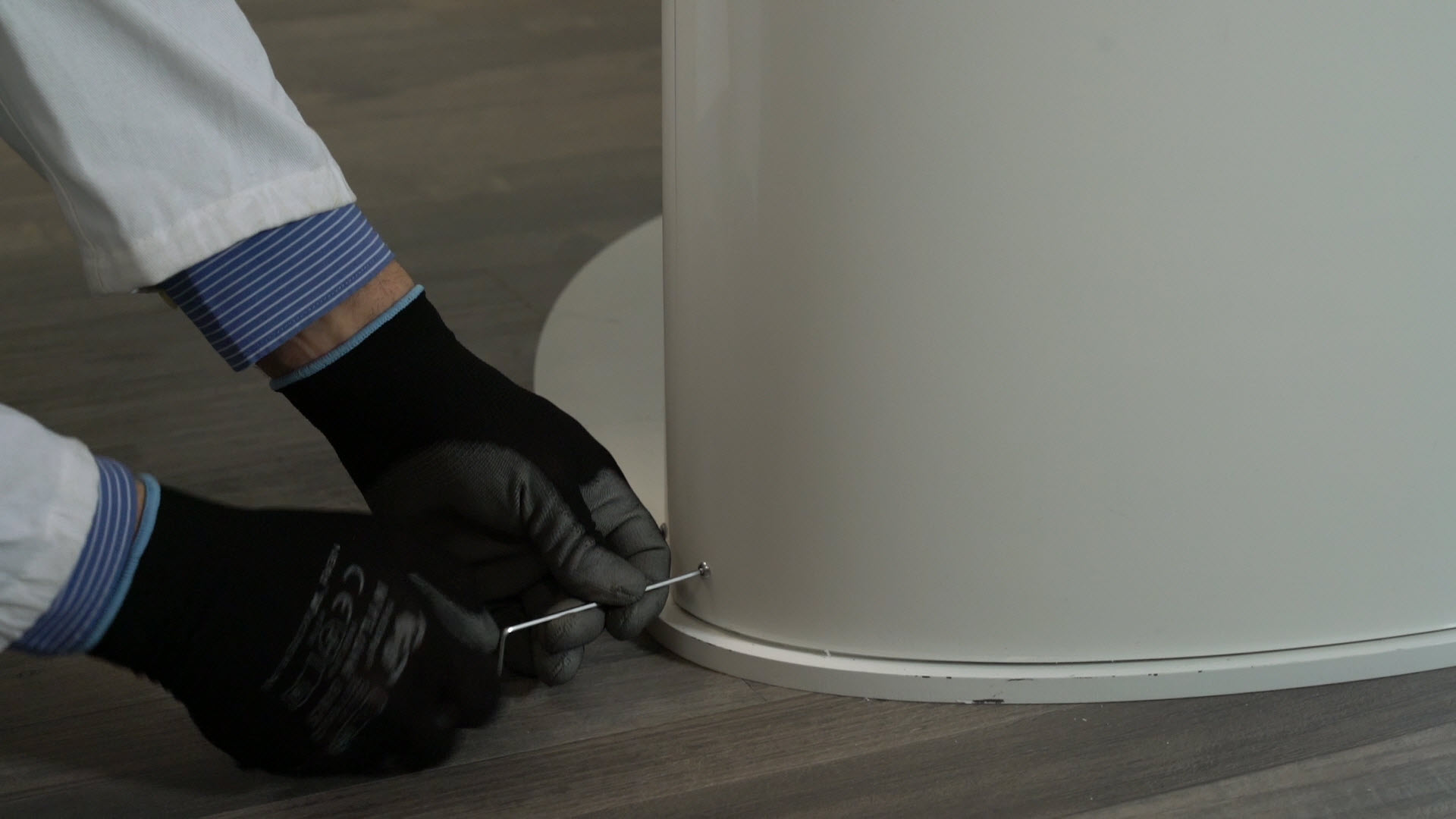

Remove the last lower lateral screw

Step 9

REMOVING THE SPITTOON BLOCK COVER

Pull out the spittoon block cover from the structure
