VACUUM PUMP
Description
This tutorial will help you to disassemble and replace the vacuum pump
| Activities: | 9 |
| Difficulty: | Medium |
Necessary Tools
- Phillips Screwdriver
- Cutters
- Allen Key
- Flat Screwdriver with slot
Replacement Parts
- Vacuum Pump
VACUUM PUMP
Step 1
Disassembly
Please move the machine to the external edge of the table
Step 2
Disassembly
Please unscrew the pump (4 screws) to the bottom side of machine through the Phillips screwdriver
Step 3
Disassembly
Please disconnect the entry and exit pipes
Step 4
Disassembly

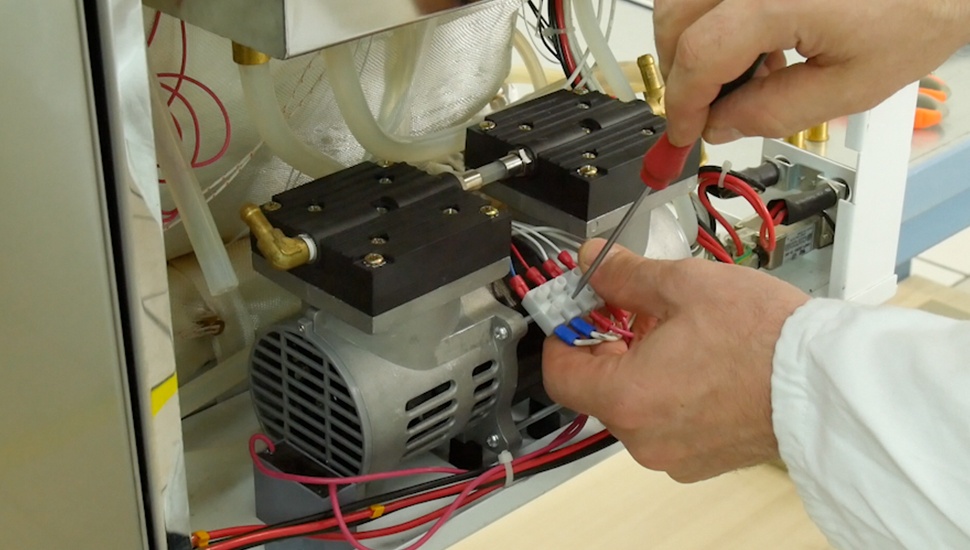

Please disconnect the power supply cables and the capacity cable from the quick connector (mammut)
Step 5
Replacement
- Please pull the pump out
- Please replace the vacuum pump with a new one
Step 6
Assembly
Please place the pump on its original position
Step 7
Assembly
Please connect the entry and exit pipes
Step 8
Assembly
Please connect the power suplly cables and the capacity cable from the quick connector (mammut)
Step 9
Assembly
Please tighten the pump with 4 screws
