THE CONNECTORS ON THE PCB CHU1
Description
We show you the position of elettrical connection on the CHU1 inside the spitton blockt.
Step 1

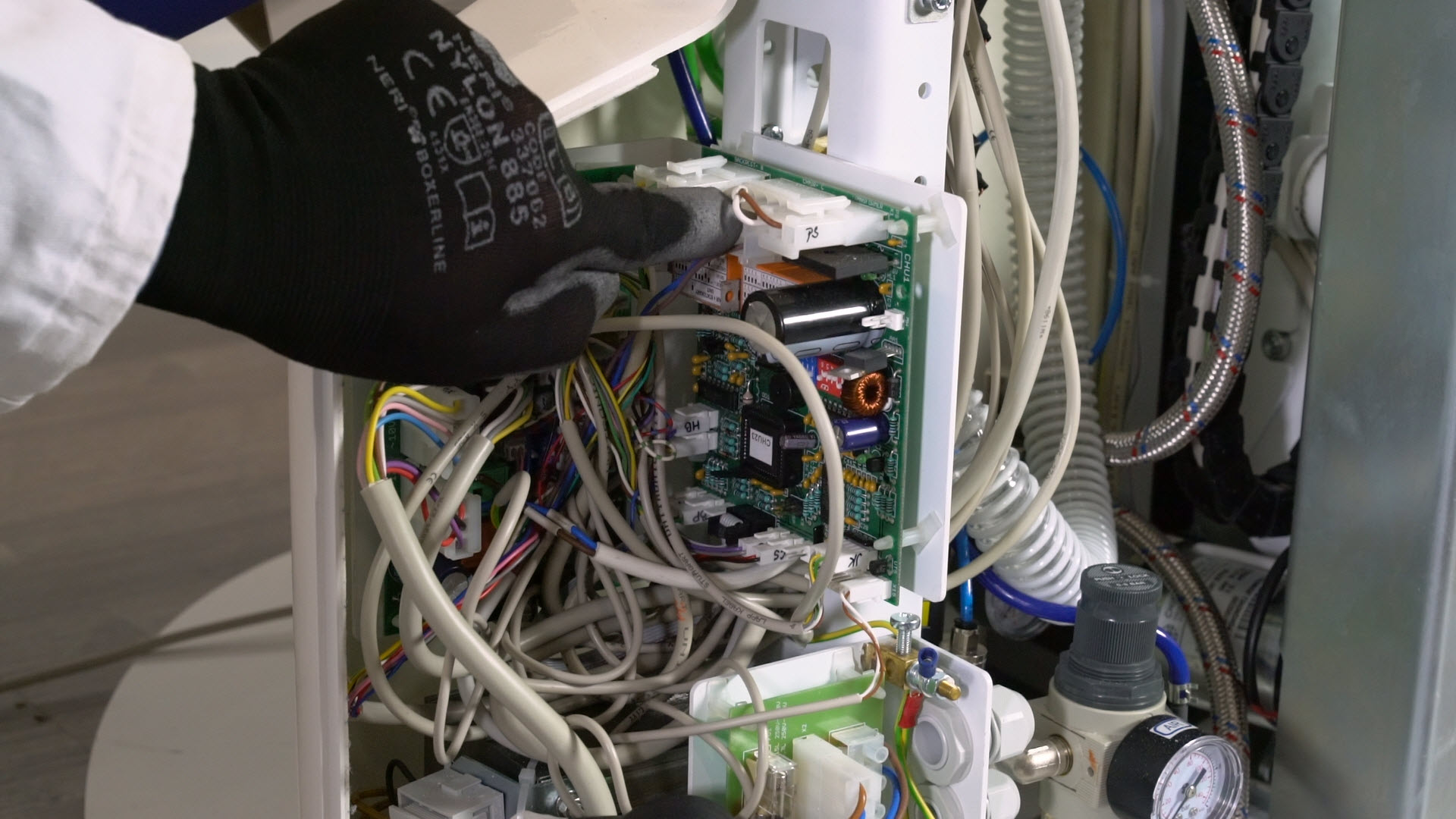

CHECK ALL CONNECTORS ON THE PCB CHU1
Check the elettrical connection of the connectors for the movimentation of the chair (JK, CS, flat cable)
Step 2

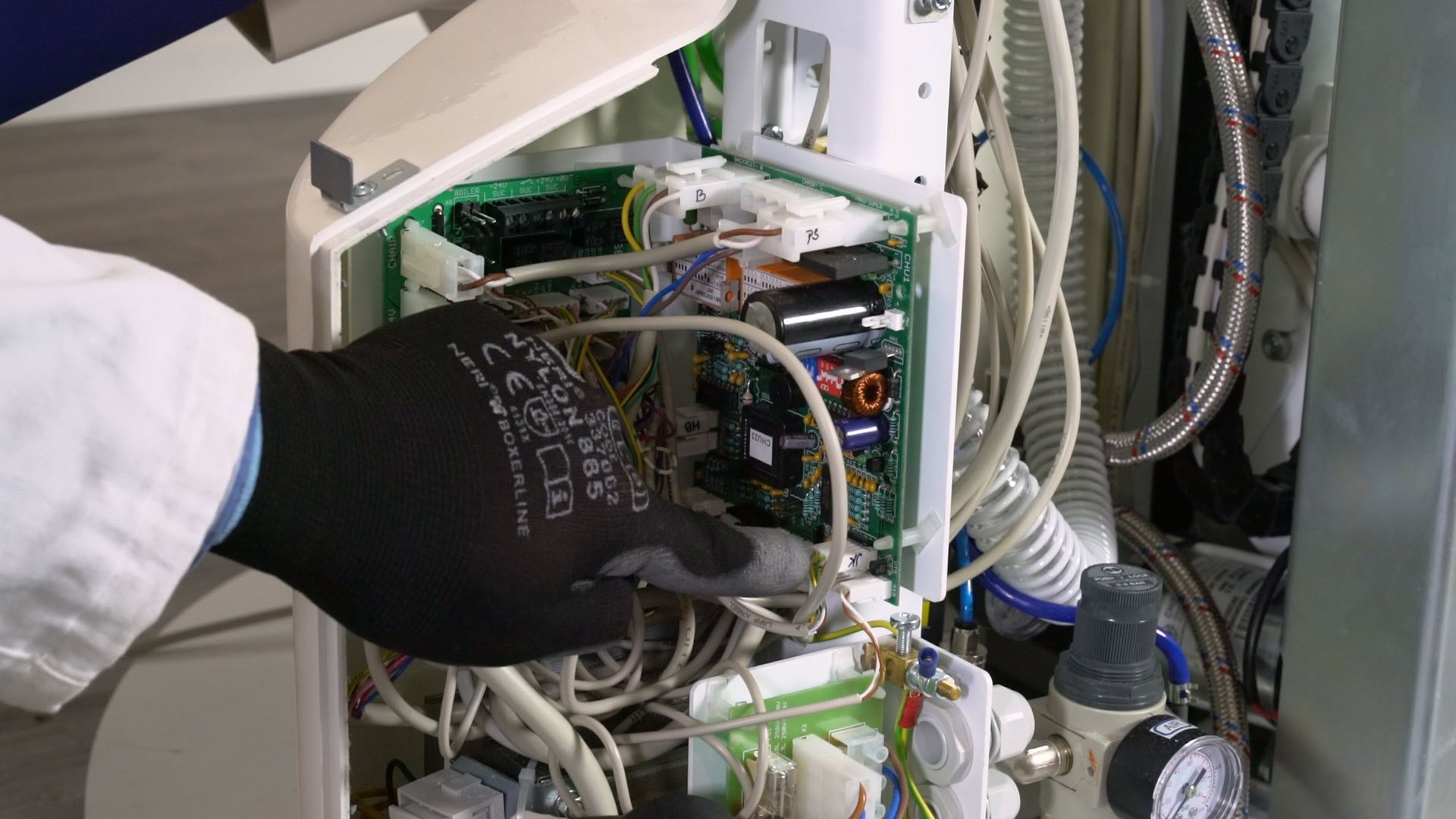

CHECK ALL CONNECTORS ON THE PCB CHU1
Check the power supply on the connectors for the limit positions of the chair and backrest (BH, CH)
