OPENING DOCTOR TABLET
Description
If there are problems regarding the selection of the instruments, the buttons on the control panel or there are no high pressured air in the doctor tablet that means you have to work inside the doctor tablet, so you have to open it.
In this section we show us how to open the doctor tablet.
Step 1

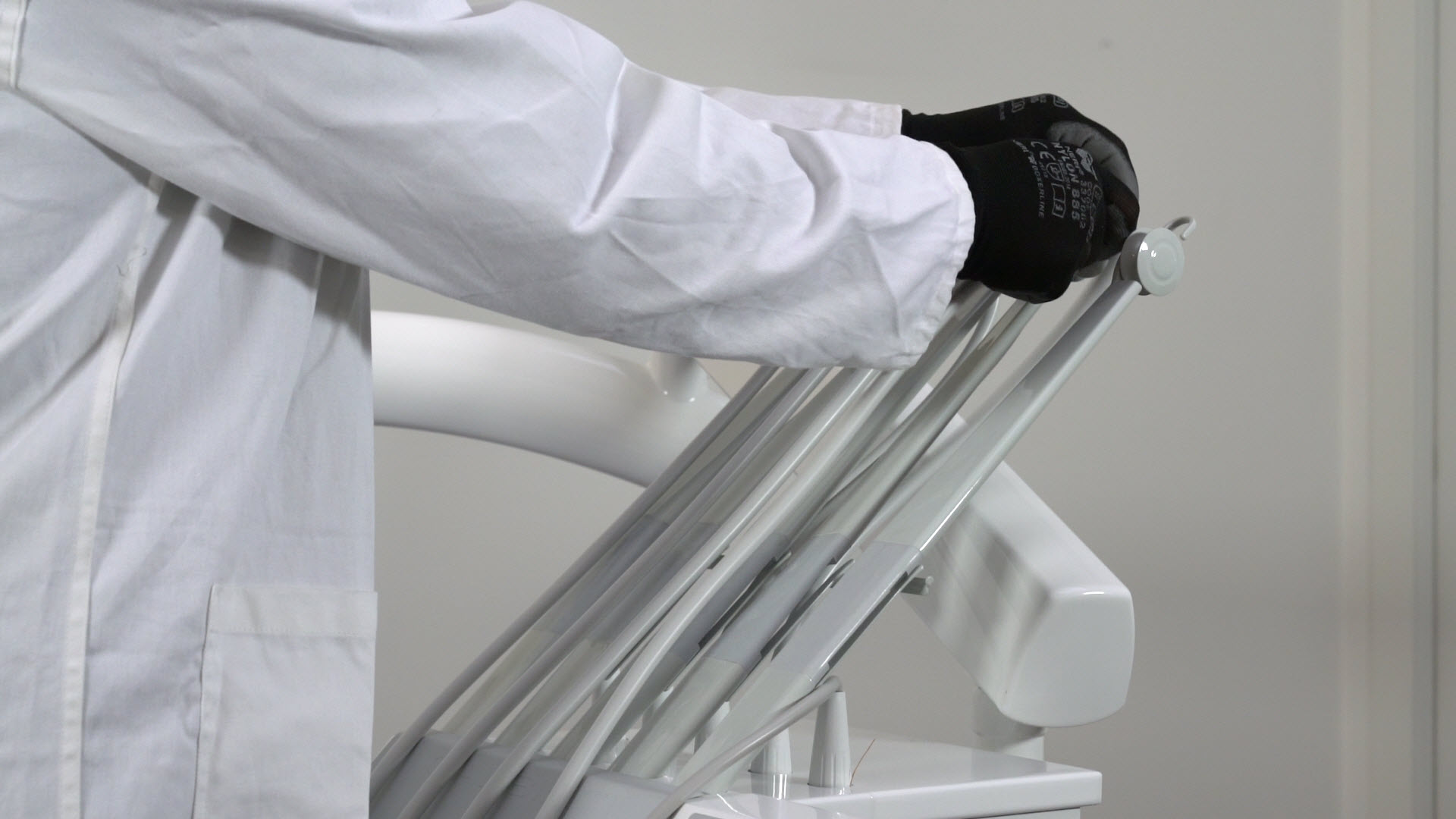

REMOVING THE HANDPIECES AND THE HOSES
Remove all instruments from the hoses and all hoses from the arms
Step 2

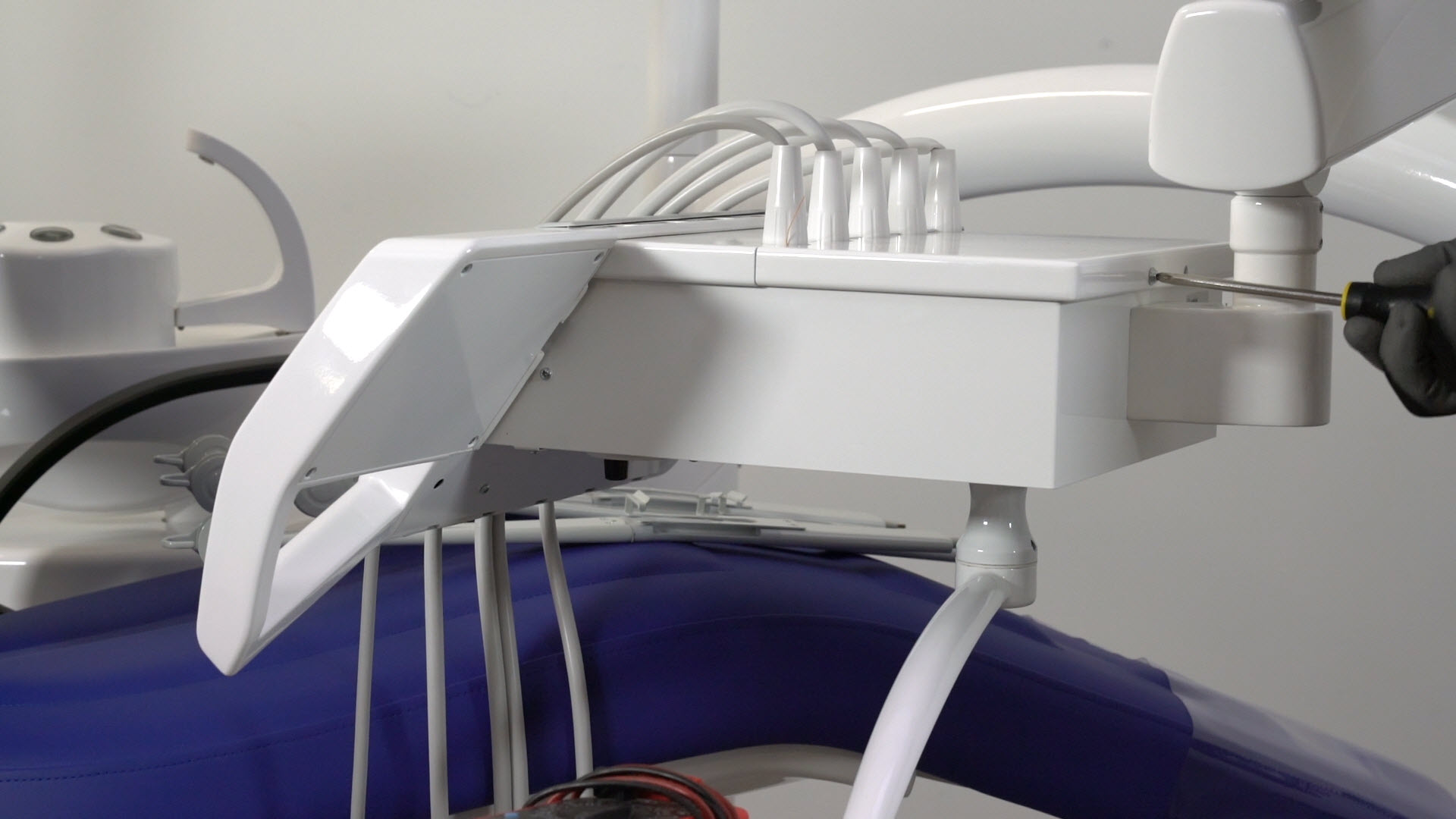

REMOVING THE POSTERIOR SCREWS FROM THE COVER
Remove the posterior 2 screws from the cover
Step 3

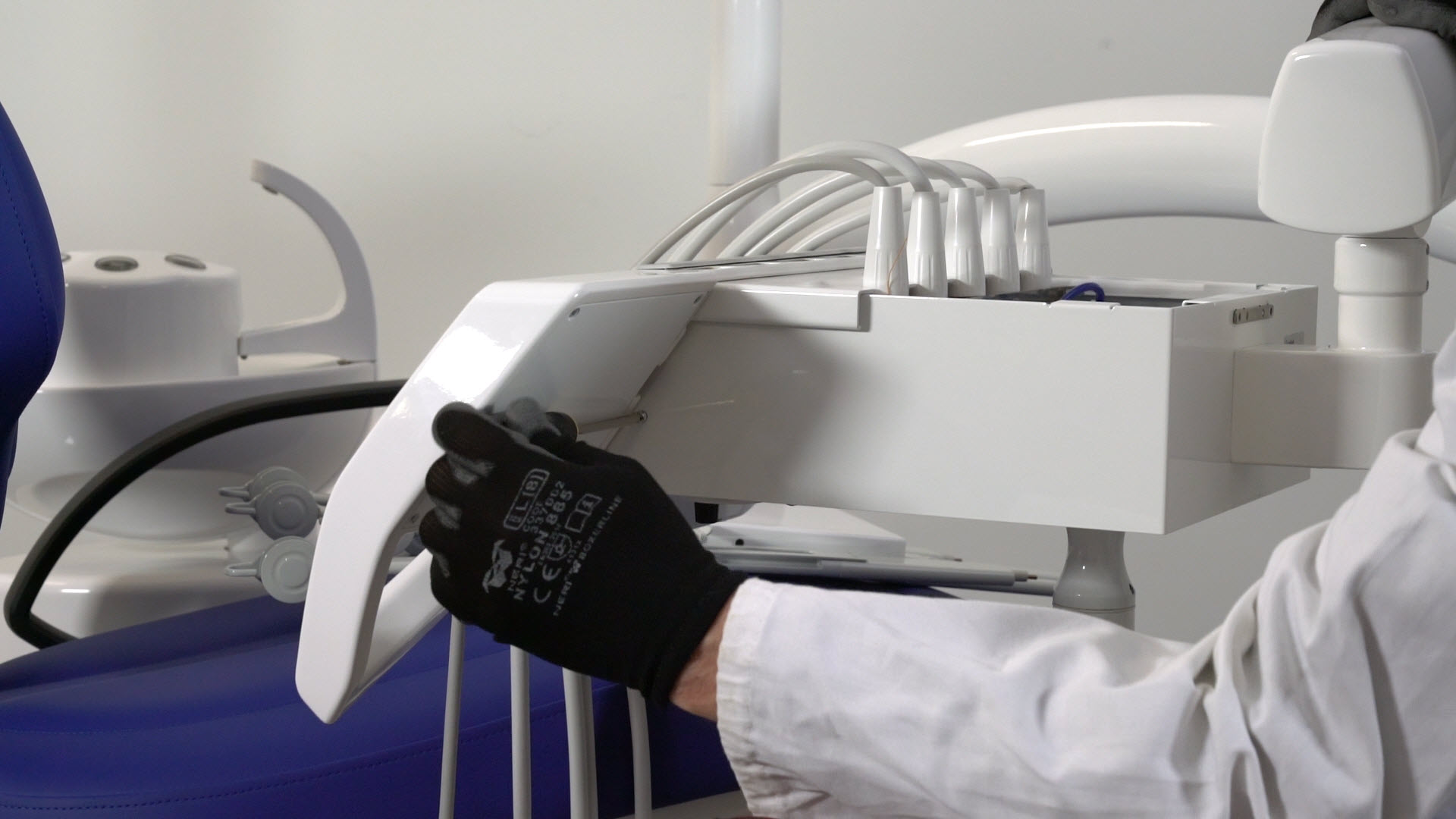

REMOVING THE LATERAL SCREWS
Remove the upper cover of the tablet and the lateral screws from the cover
Step 4
OPENING THE DOCTOR TABLET
Rotate the front cover of the doctor tablet
