INTERNAL COMPONENTS ELECTRICAL AREA OF THE DOCTOR TABLET
Description
The PCB SMC1 is used to regulate the speed of commutator micromotor (if there is a micromotor on the doctor tablet).
The PCB SECB3 is used to control the dental unit.
Step 1
OPENING THE DOCTOR TABLET

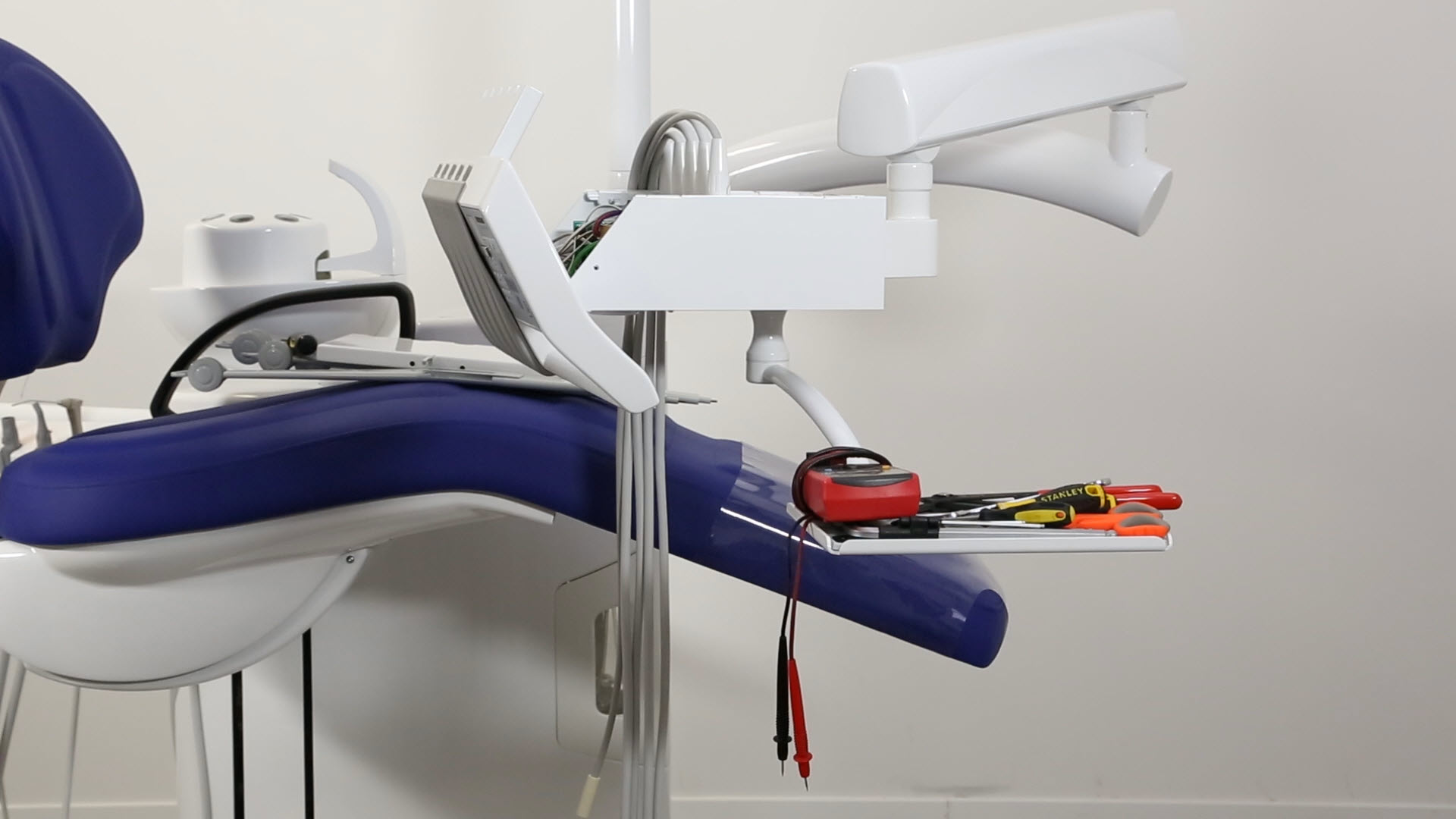

Open the doctor tablet by rotating the front cover
Step 2
INTERNAL COMPONETS

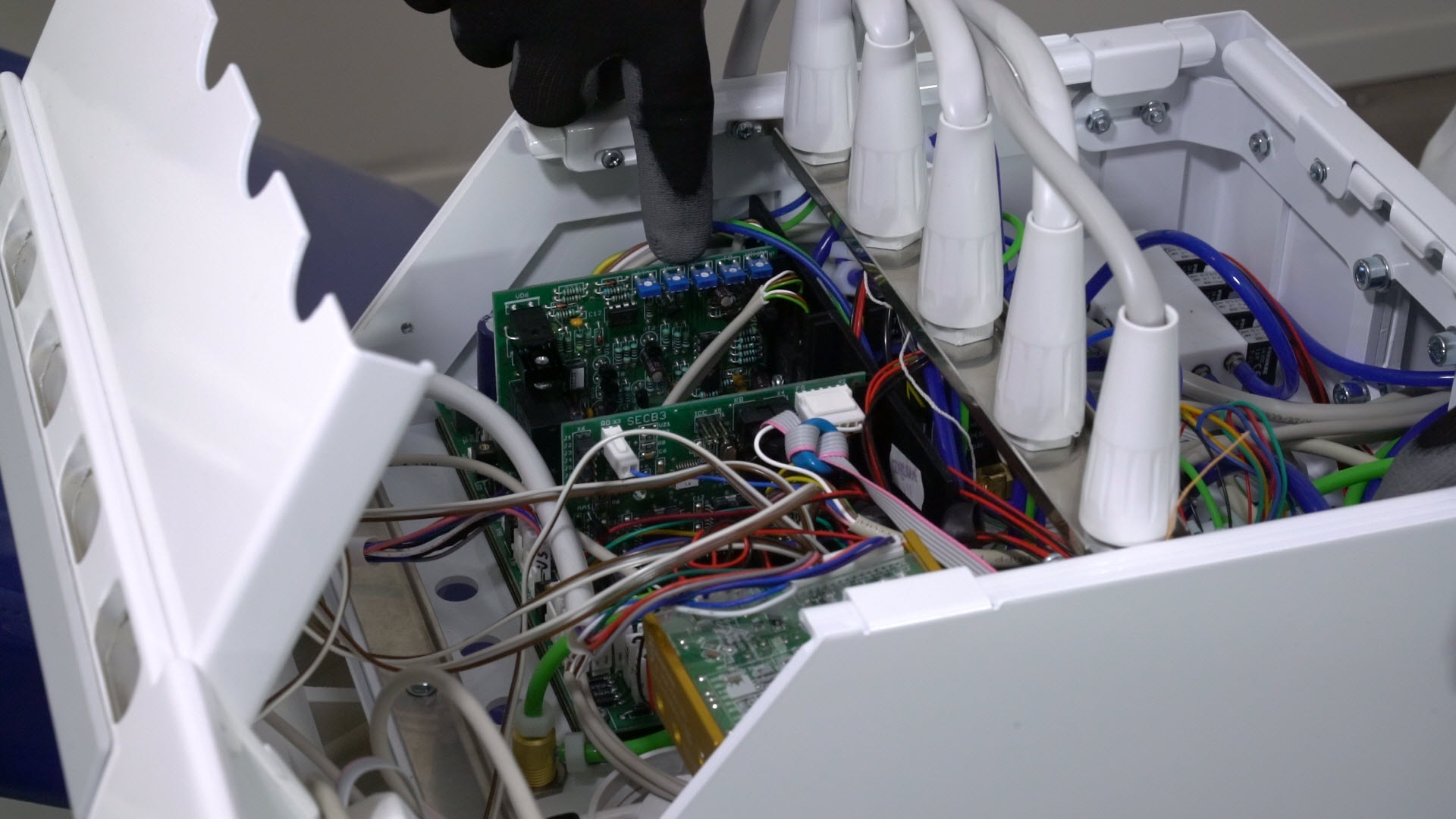

Check the regulator trimmers on the PCB SMCS1
Step 3
REMOVING THE PCB SMCS1

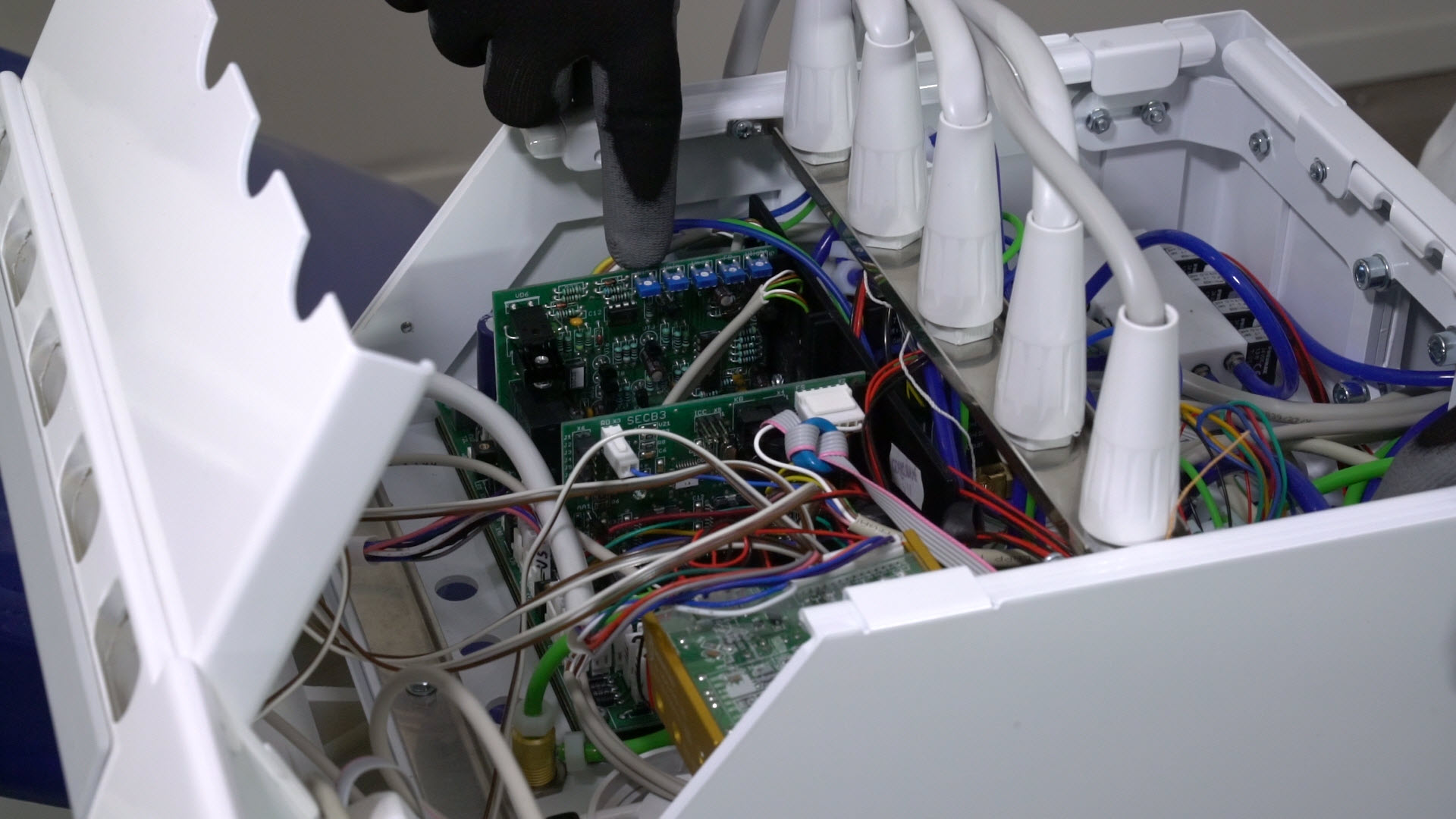

Check the PCB SMCS1 and pull out the PCB SMCS1 from the electrical socket
Step 4
REPLACEMENT WITH NEW ONE
Replace with the new one
Step 5

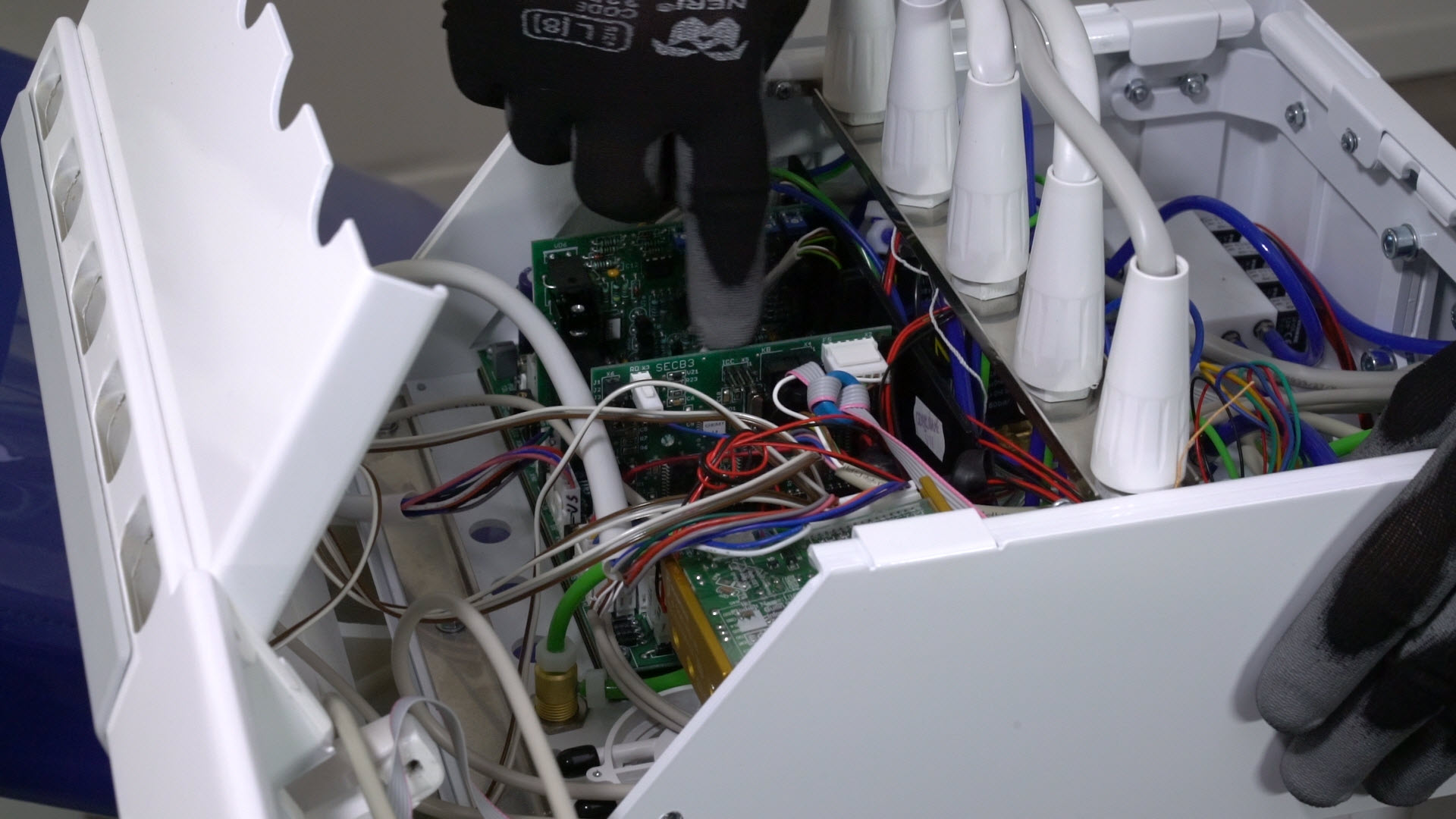

POSITION OF SECB3
Check the PCB SECB3 and the connectors and jumpers on the PCB SECB3
Step 6

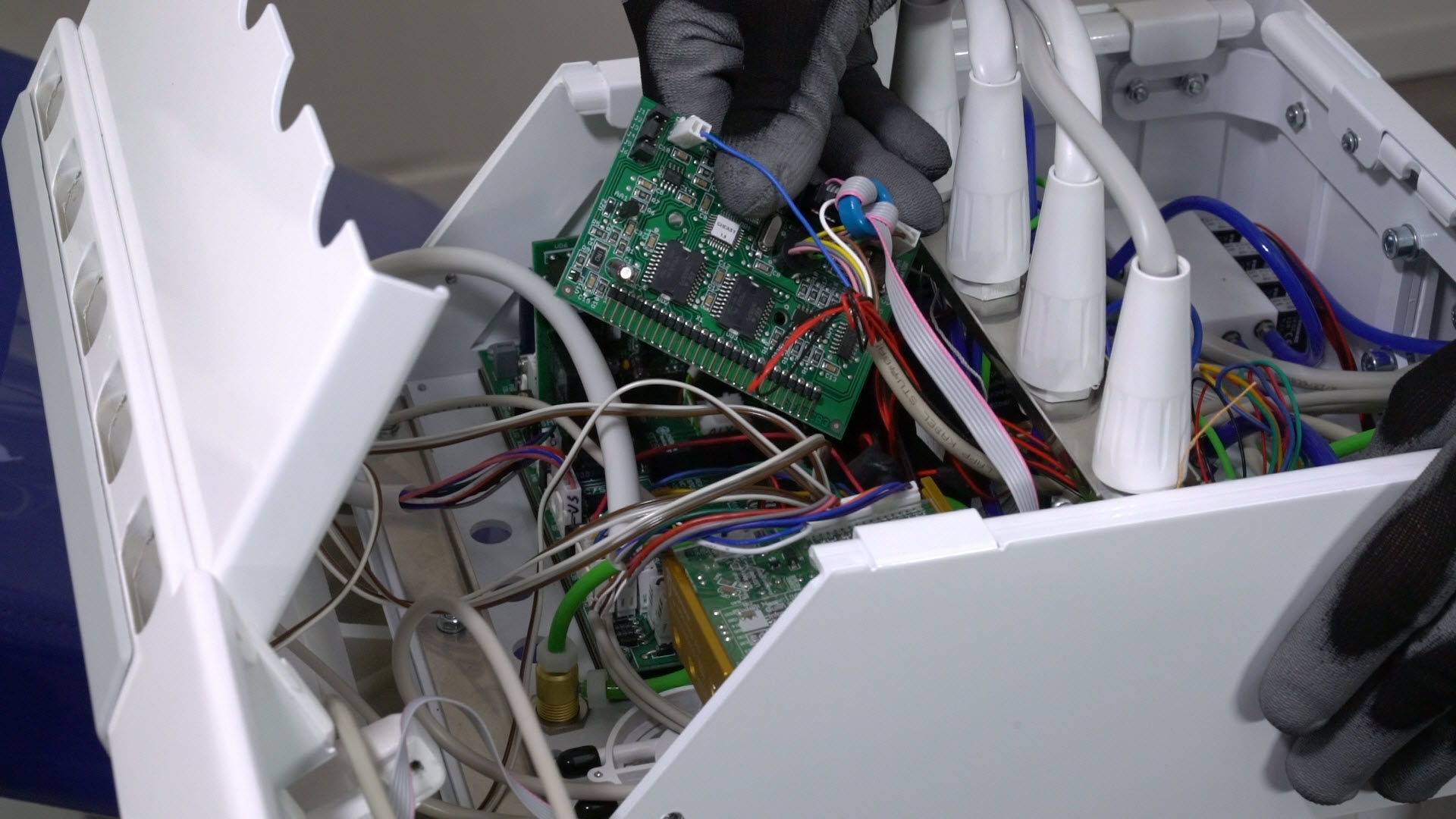

REMOVING THE PCB SECB3
Pull out the PCB SECB3and replace with the new one
