SAFETY SWITCH

Description

If the security closer system does not work, here you can find the guide that will show you how to check and replace the security system closer



Activities: 9
Difficulty: Medium

Necessary Tools

  • Phillips Screwdriver
  • 17mm Key
  • Allen Key

Replacement Parts

  • Safety switch

SAFETY SWITCH

Step 1

Disassembly

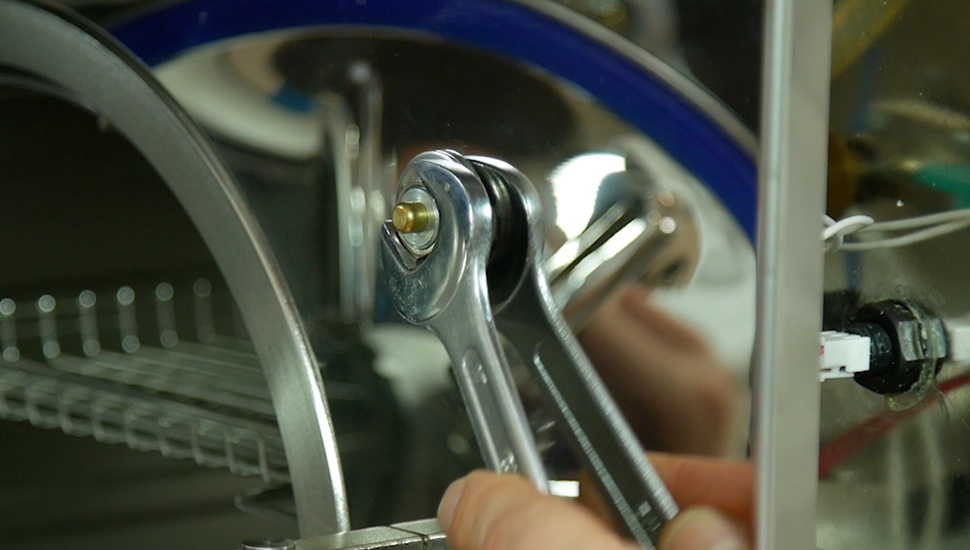

Please unscrew the external nut with 17mm key

Step 2

Disassembly

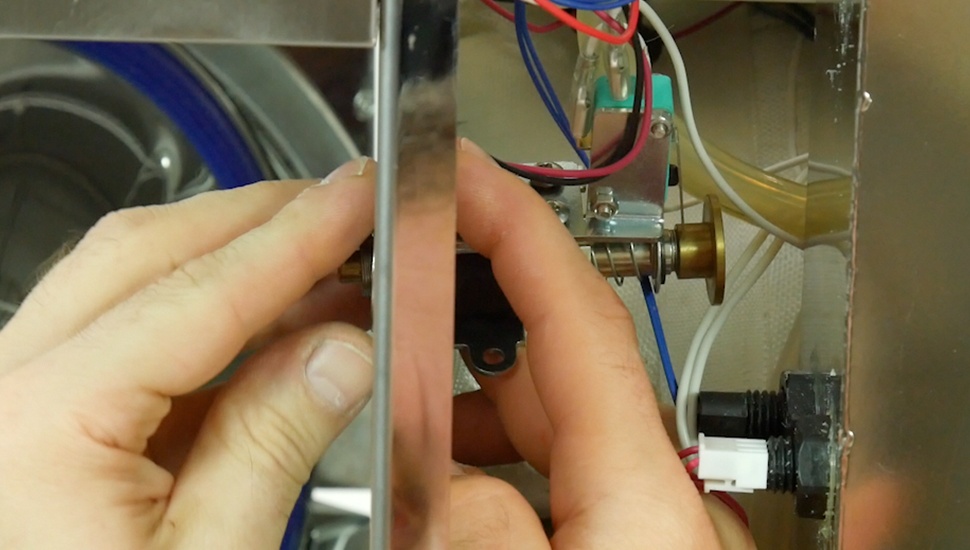

Please pull the safety blocking system out from the inside

Step 3

Disassembly

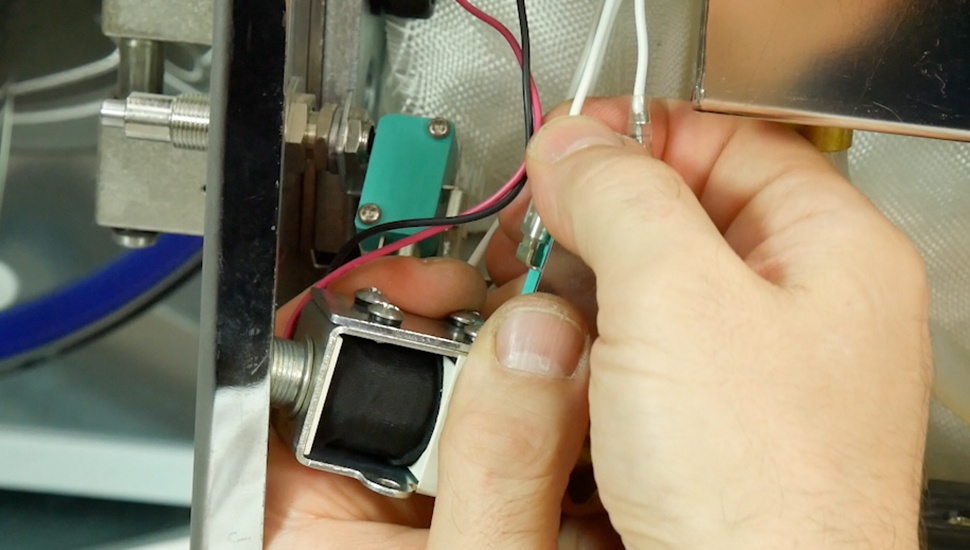

Please disconnect the faston connectors

Step 4

Disassembly

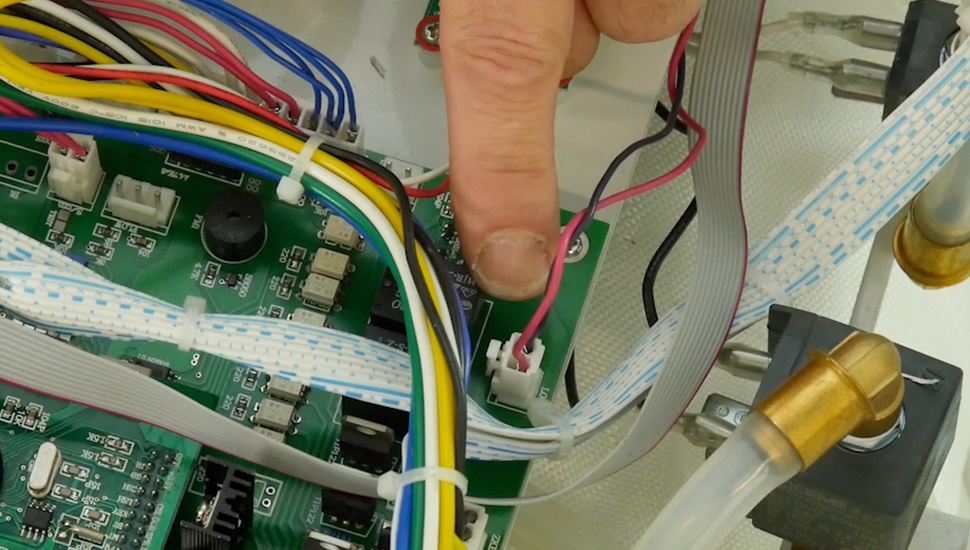

Please disconnect the connector from the main board

Step 5

Replacement

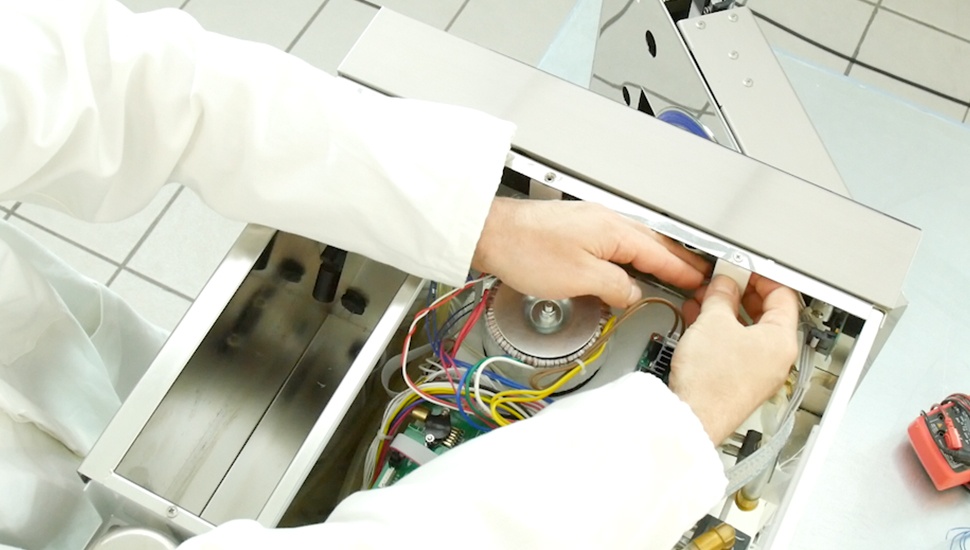

Please change the safety switch with the new one

Step 6

Assembly

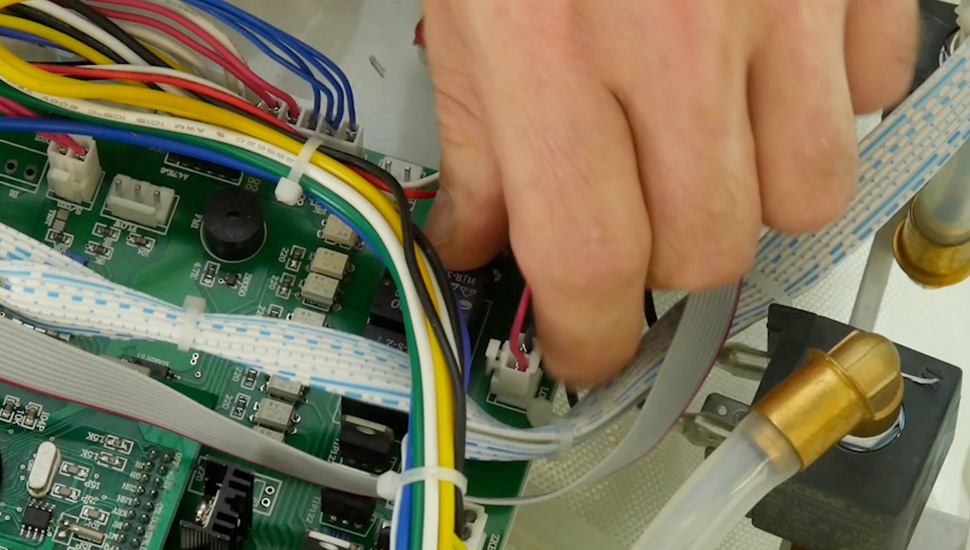

Please connect the connector on the main board

Step 7

Assembly

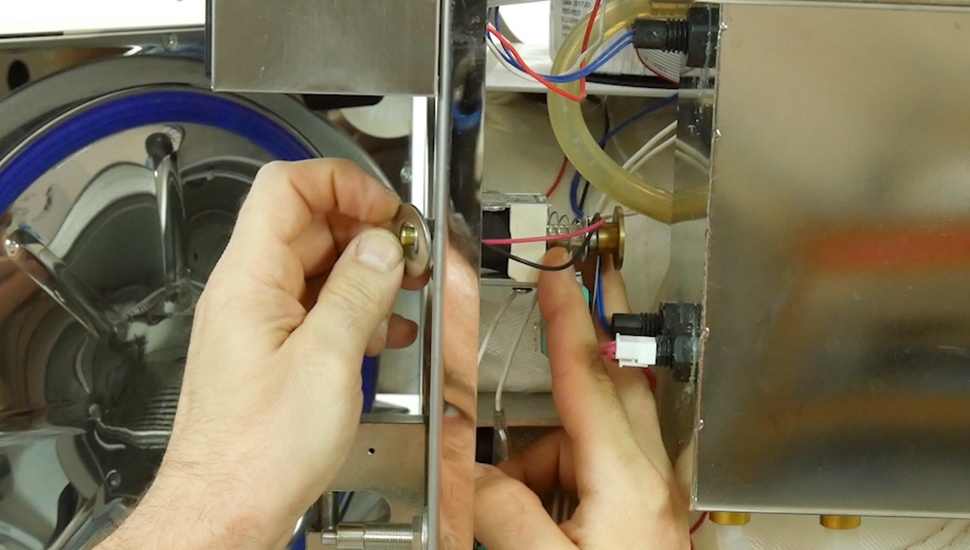

Please place the safety switch on its original position

Step 8

Assembly

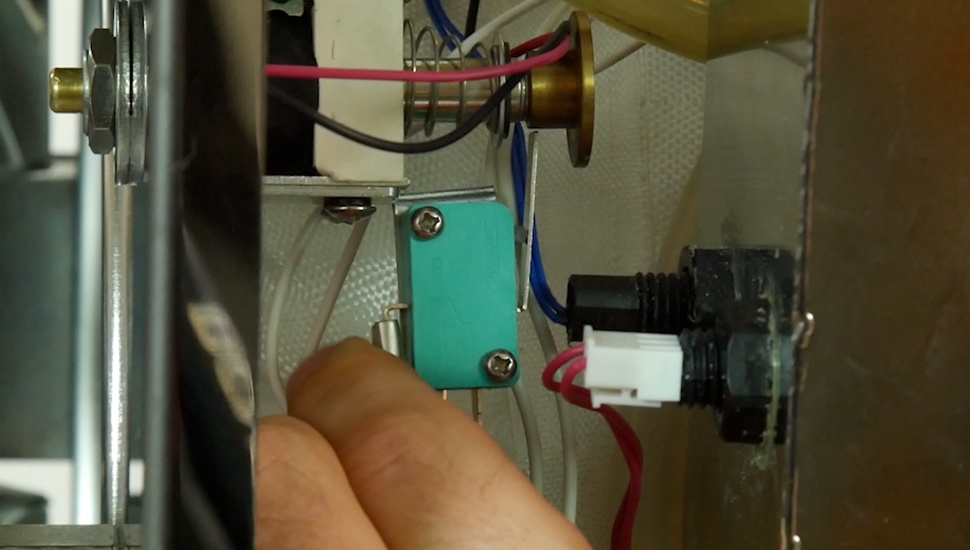

Please connect the faston connectors

Step 9

Assembly

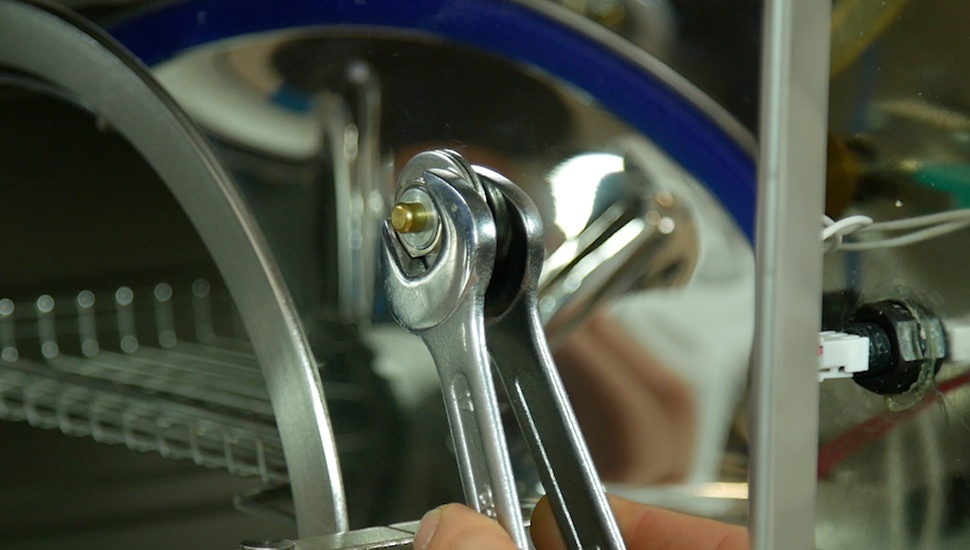

Please fix the safety switch by tightening the external nut with 17 mm key
