RADIATOR REPLACEMENT
Description
Follow this guide to replace a radiator
| Activities: | 7 |
| Difficulty: | Medium |
Necessary Tools
- Phillips Screwdriver
Replacement Parts
- Radiator
RADIATOR REPLACEMENT
Step 1
Disassembly

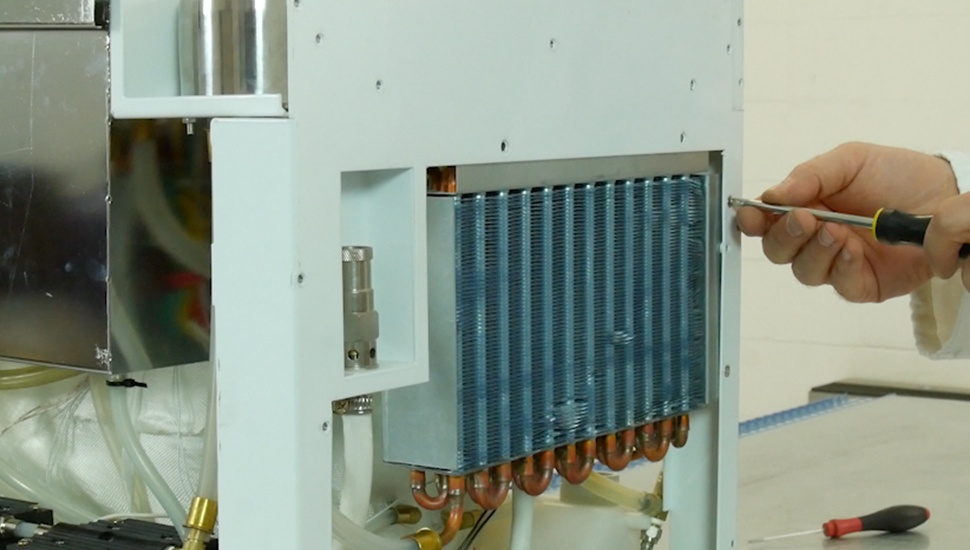

Please unscrew the 3 fixing screws
Step 2
Disassembly

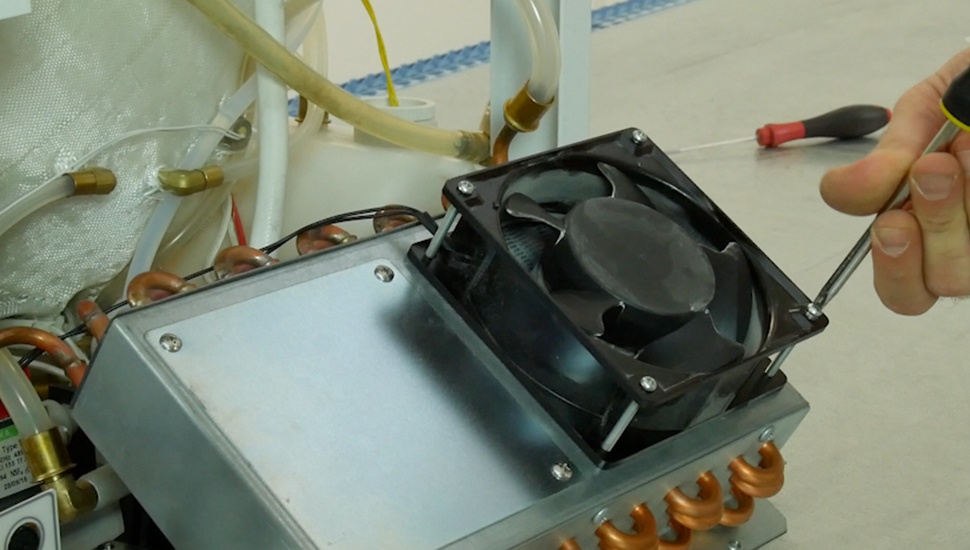

Please unscrew the cooling fan through 4 screws
Step 3
Disassembly

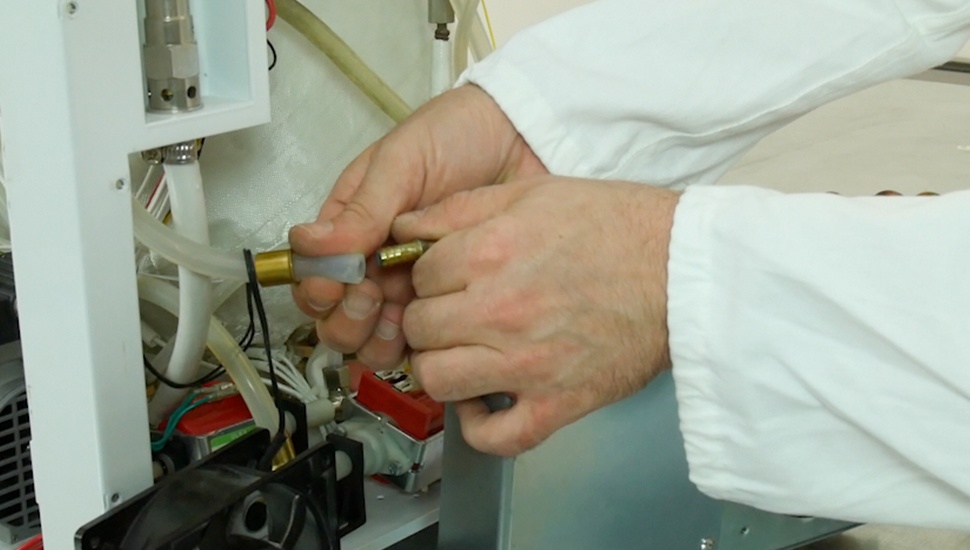

Please disconnect the inlet and outlet silicone pipes
Step 4
Replacement
Please replace the radiator with a new one
Step 5
Assembly

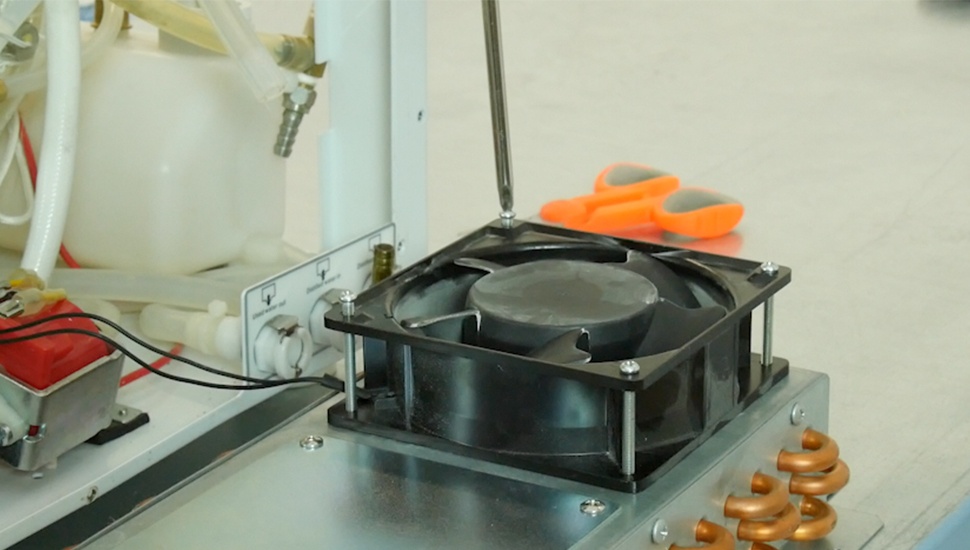

Please tighten the cooling fan through 4 screws
Step 6
Assembly

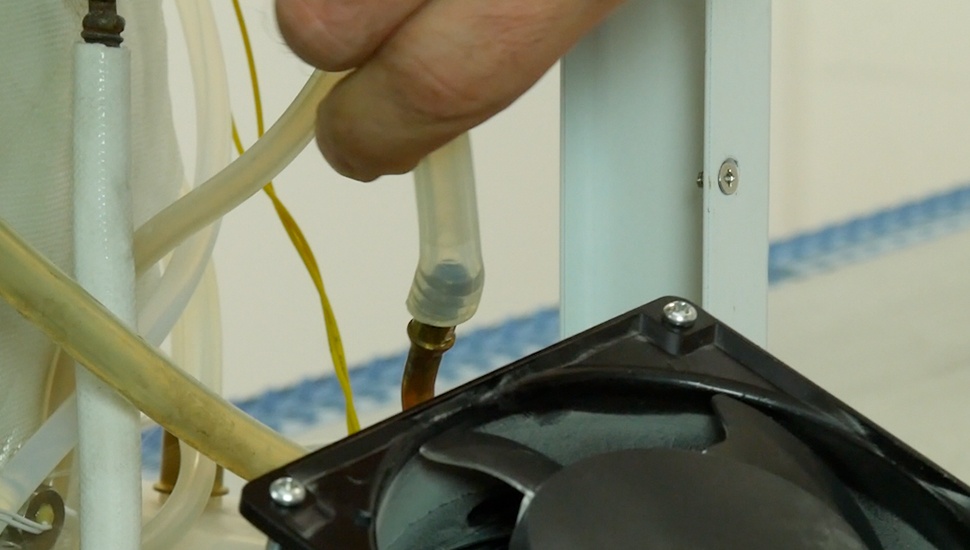

Please connect the 2 silicone entry and exit pipes
Step 7
Assembly

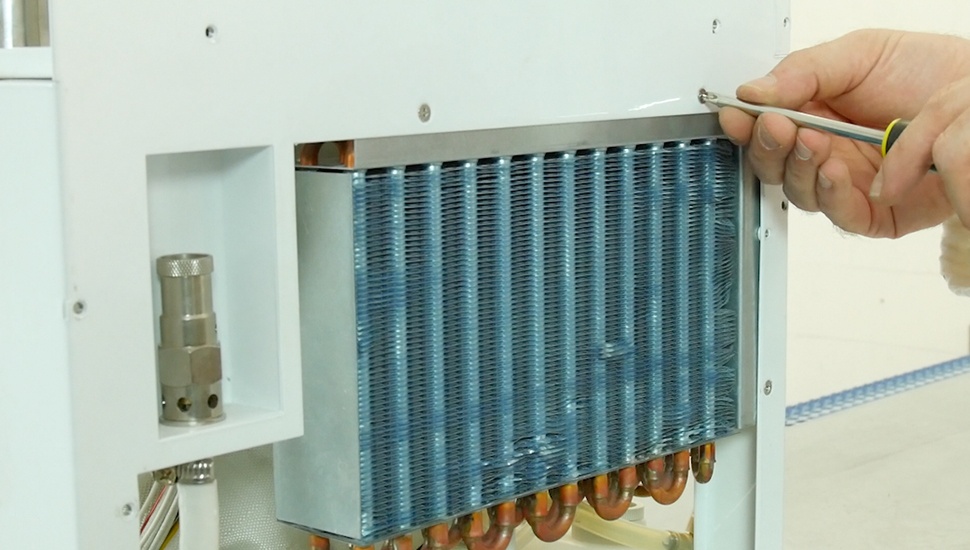

Please tighten the 3 fixing screws and place the external back cover
