PCB-USB REPLACEMENT

Description

Use this guide to replace non-functiong PCB-USB



Activities: 4
Difficulty: Low

Necessary Tools

  • Phillips Screwdriver

Replacement Parts

  • PCB-USB

PCB-USB REPLACEMENT

Step 1

Pull the PCB-USB out

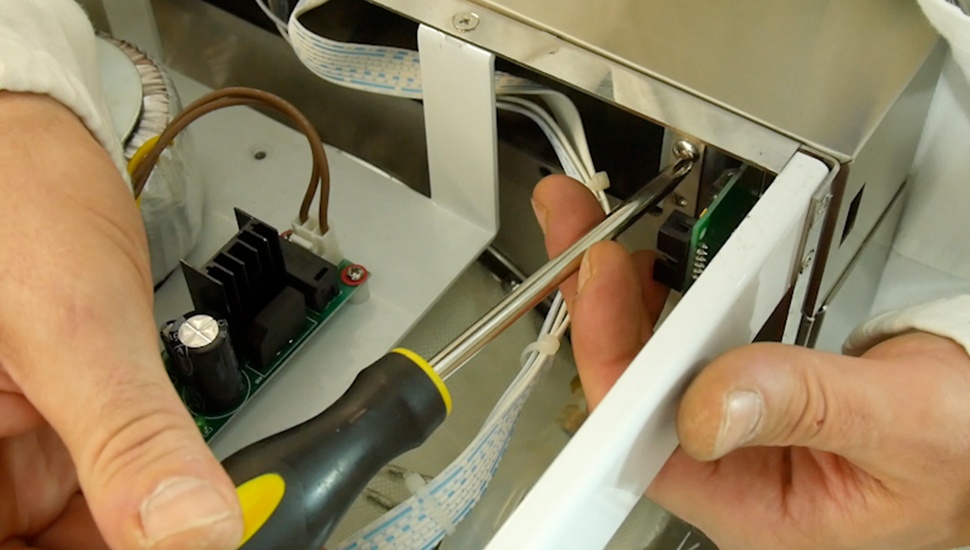

Please unscrew the 2 screws of metal L-shape support through the Phillips screwdriver

Step 2

Replacement of damaged part

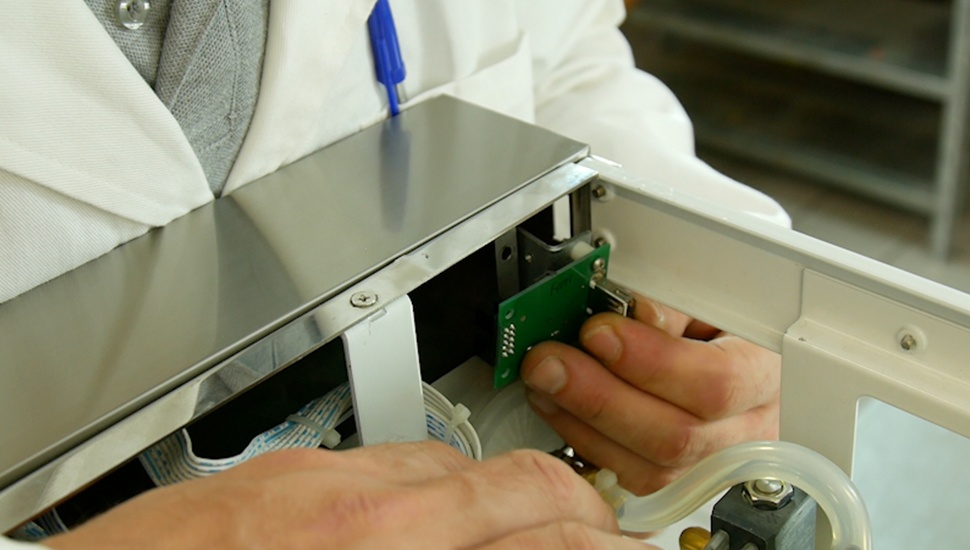

Please change the PCB-USB with a new one

Step 3

Re-assembly

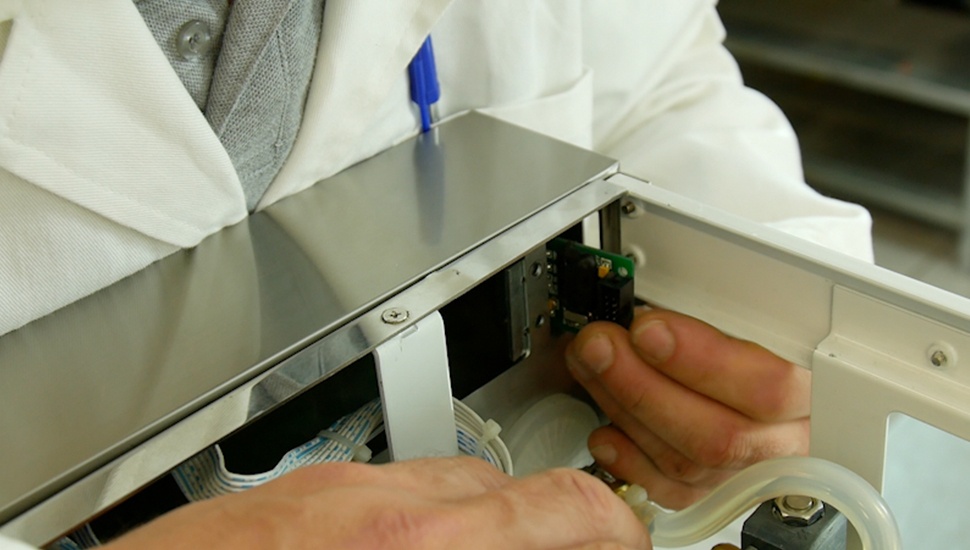

Please put back the PCB-USB together with its metal L-shape support

Step 4

Re-assembly

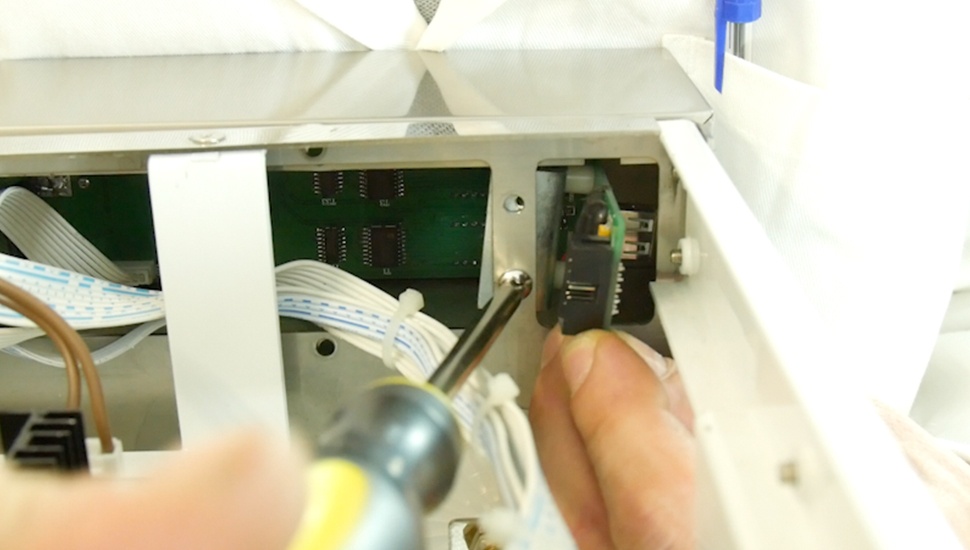

Please fix the PCB-USB to its original position by tightening 2 screws
