FUNCTION PANEL REPLACEMENT

Description

Follow this guide to replace the front panel PCB



Activities: 8
Difficulty: Medium

Necessary Tools

  • Phillips Screwdriver
  • Allen Key
  • Socket Wrench

Replacement Parts

  • Fron panel PCB

FUNCTION PANEL REPLACEMENT

Step 1

Unscrew the tank bracket

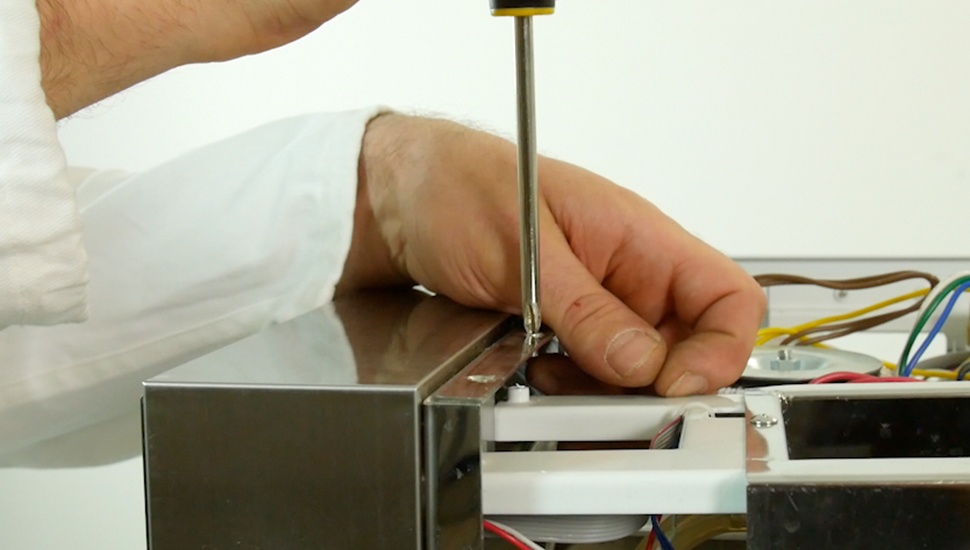

Please unscrew 4 screws with a Phillips screwdriver

Step 2

Disassemble function panel

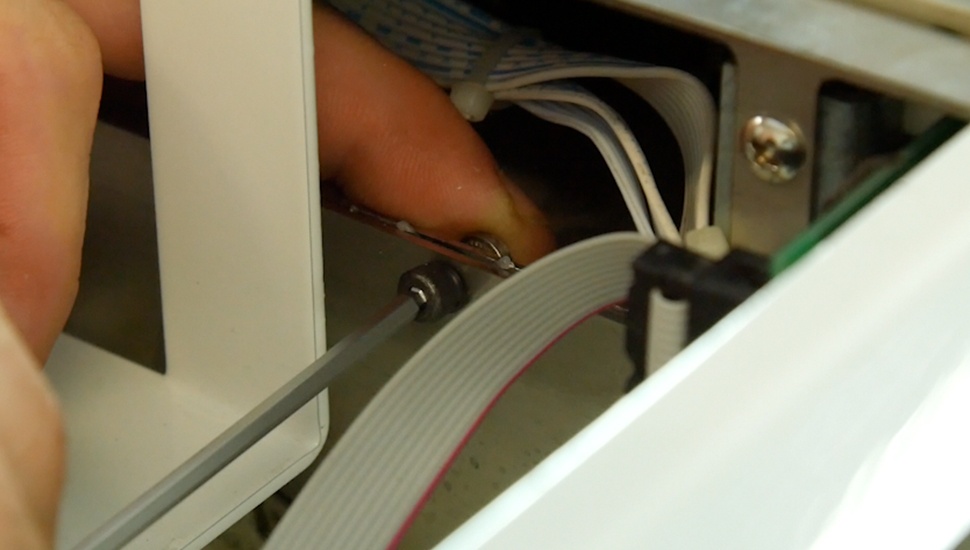

Please remove the stainless steel front panel by unscrewing the 4 screws

Step 3

Disassemble function panel

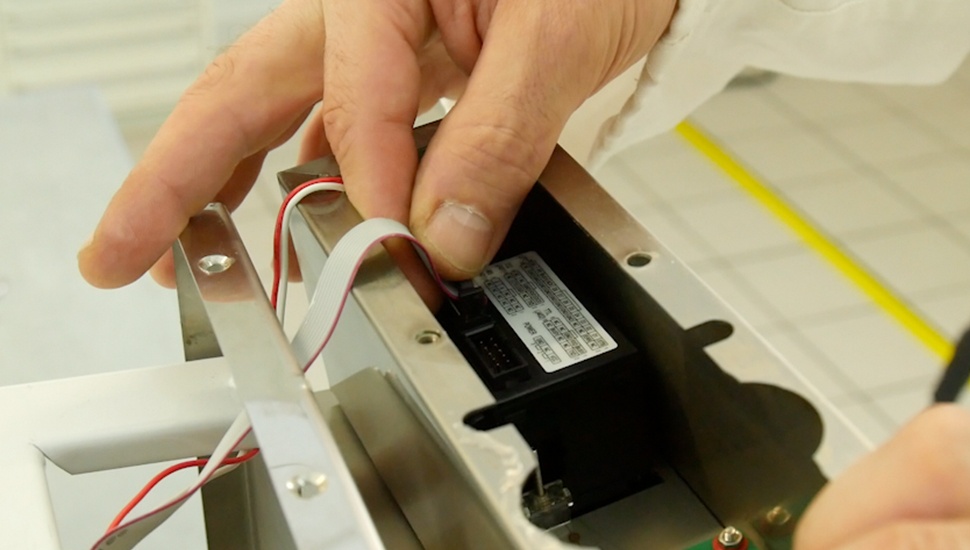

Please disconnect all connecting and power cables

Step 4

Disassemble function panel

Please unscrew 6 nuts (type 6mm) with the socket wrench

Step 5

Disassemble function panel

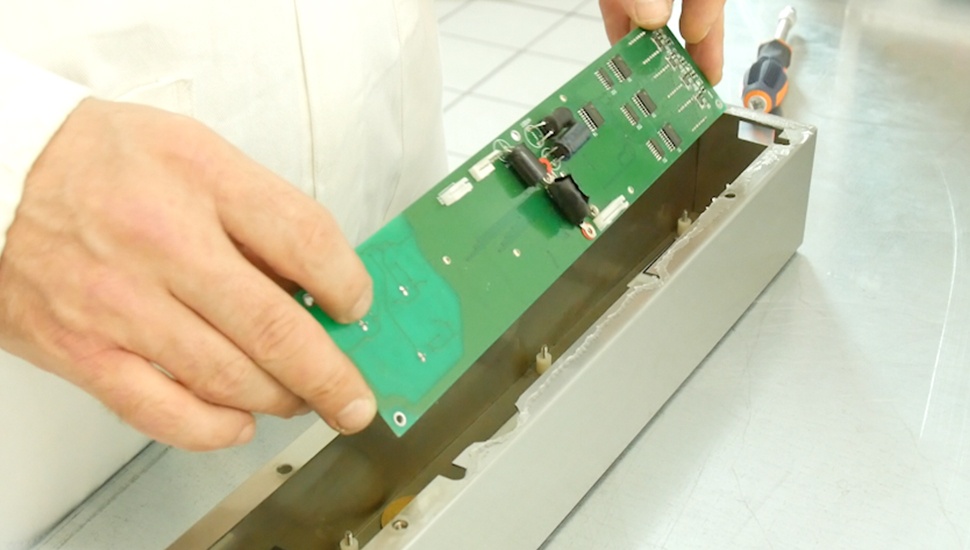

Please pull the board out

Step 6

Assemble function panel

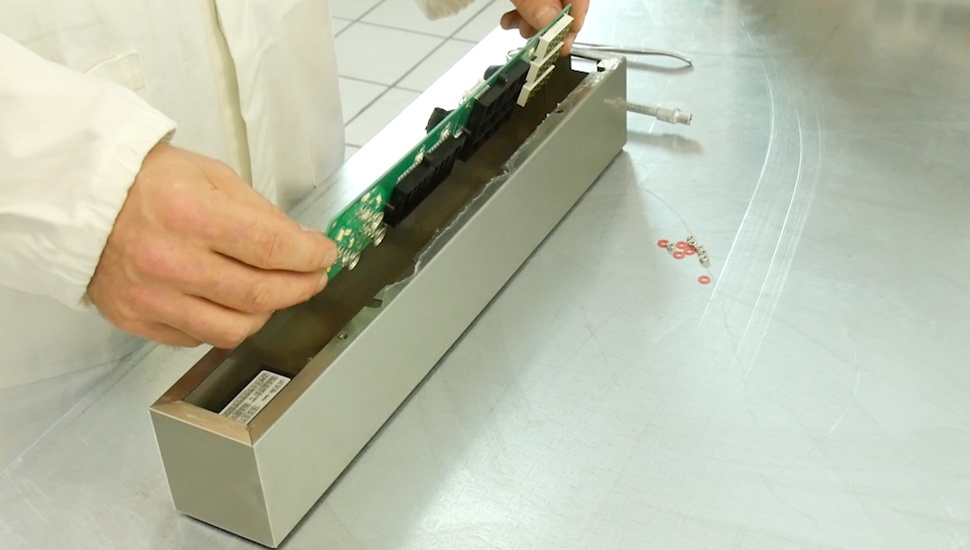

Please change the board with the new one

Step 7

Assemble function panel

Please tighten the 6 nuts with the socket wrench

Step 8

Assemble function panel

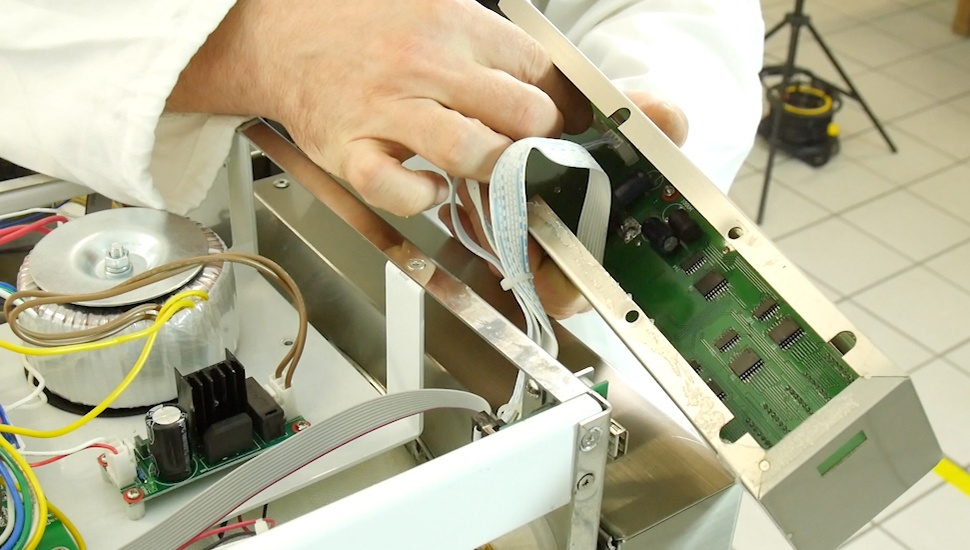

Please connect all connecting and power cables
