DISASSEMBLY EXTERNAL STAINLESS STEEL COVER PANELS
Description
This guide will show you how to disassembly the external stainless steel cover panels
| Activities: | 6 |
| Duration: | 4 min |
| Difficulty: | Low |
Necessary Tools
- TORX Screwdriver
- Phillips Screwdriver
Replacement Parts
- External Cover Panels
DISASSEMBLY EXTERNAL STAINLESS STEEL COVER PANELS
Step 1

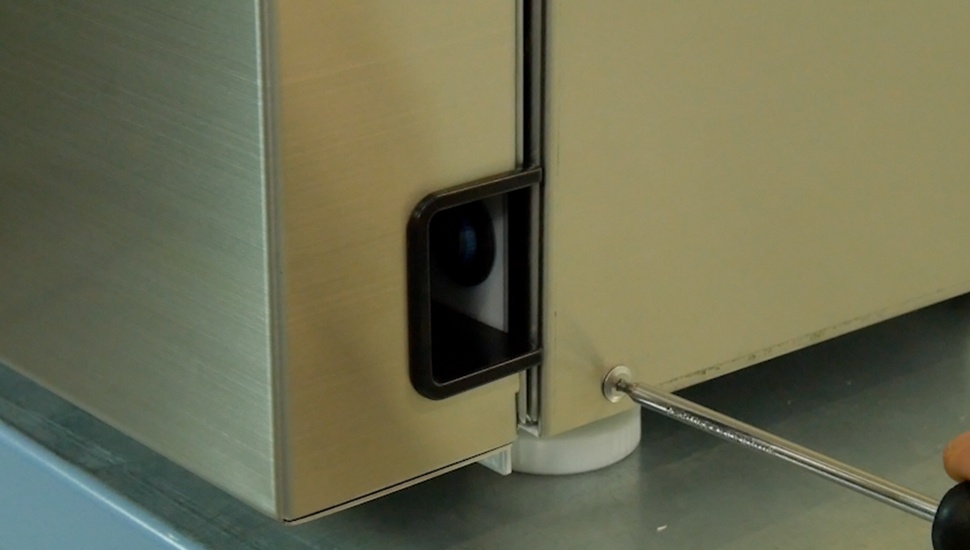

Disassembly of the external lateral cover panels
Please remove the 2 screws from the below side of the right and left cover panel using a TORX screwdriver
Step 2

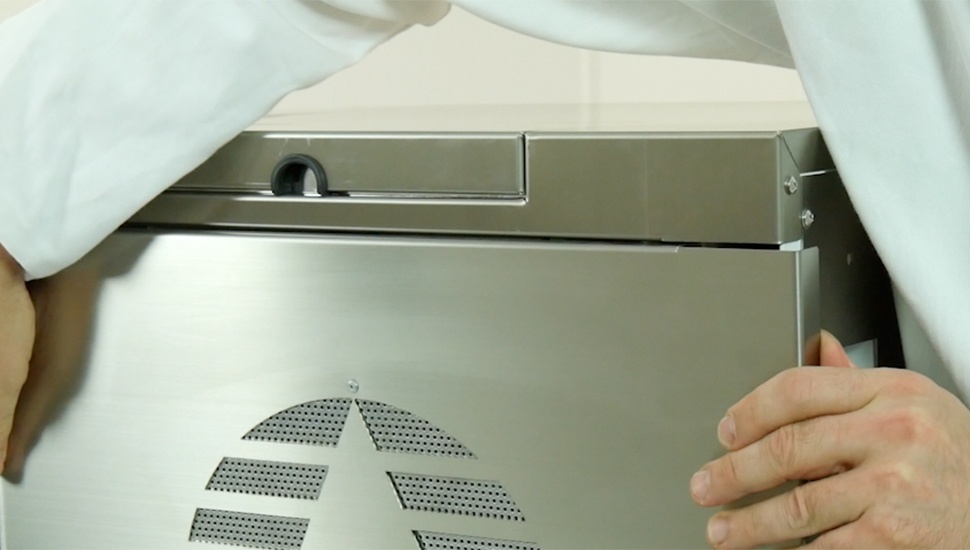

Disassembly of the external lateral cover panels
Please remove the 2 screws of the left and right cover panel using a Phillips screwdriver and pull out the lateral cover panel
Step 3

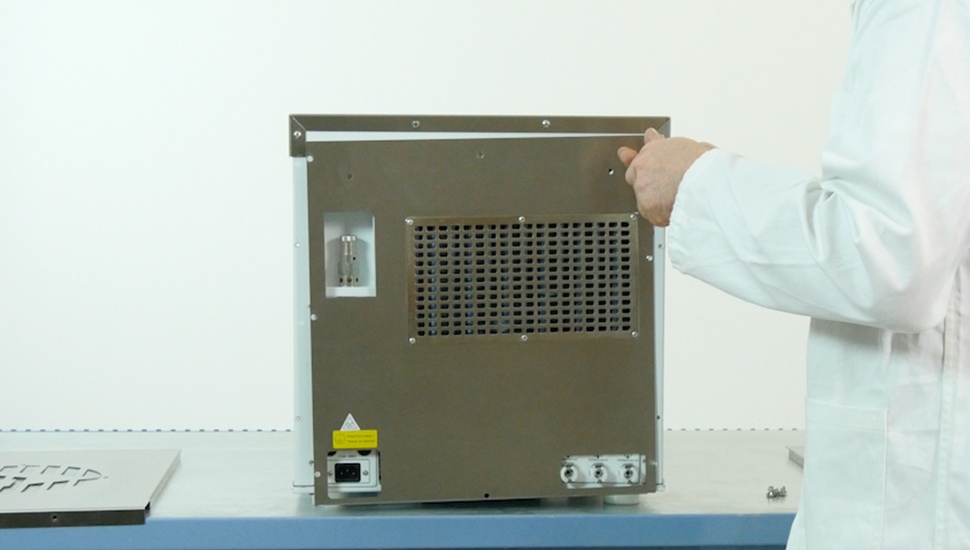

Disassembly of the external rear cover panel
Please remove the screws from the rear cover panel using a Phillips screwdriver
Step 4

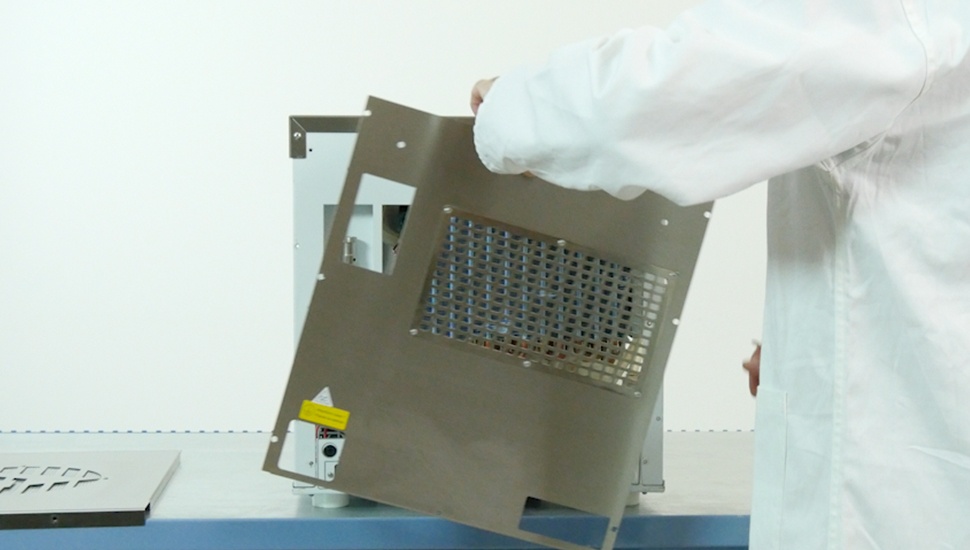

Disassembly of the external rear cover panel
Please pull the rear cover panel out
Step 5

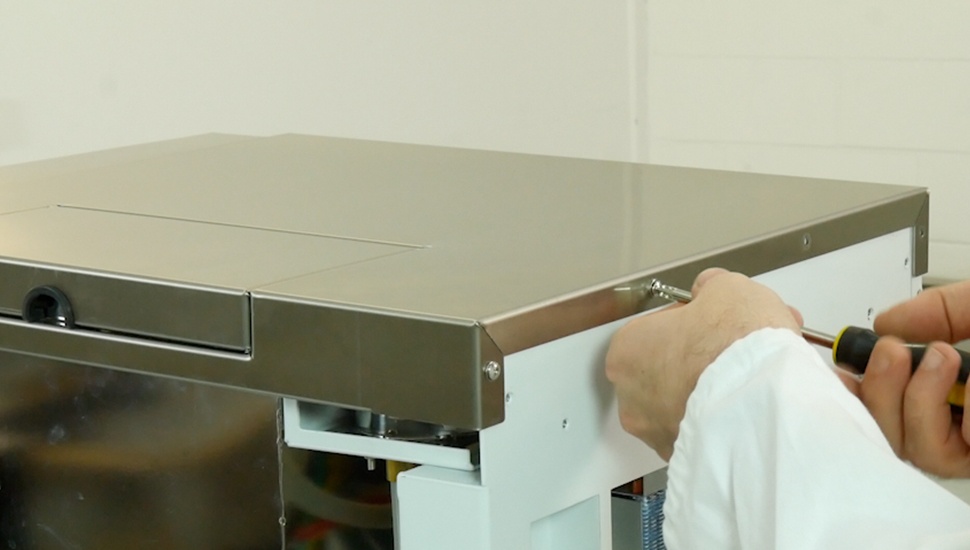

Disassembly of the external upper cover panel
Please remove the 4 screws from the upper cover panel using a Phillips screwdriver
Step 6

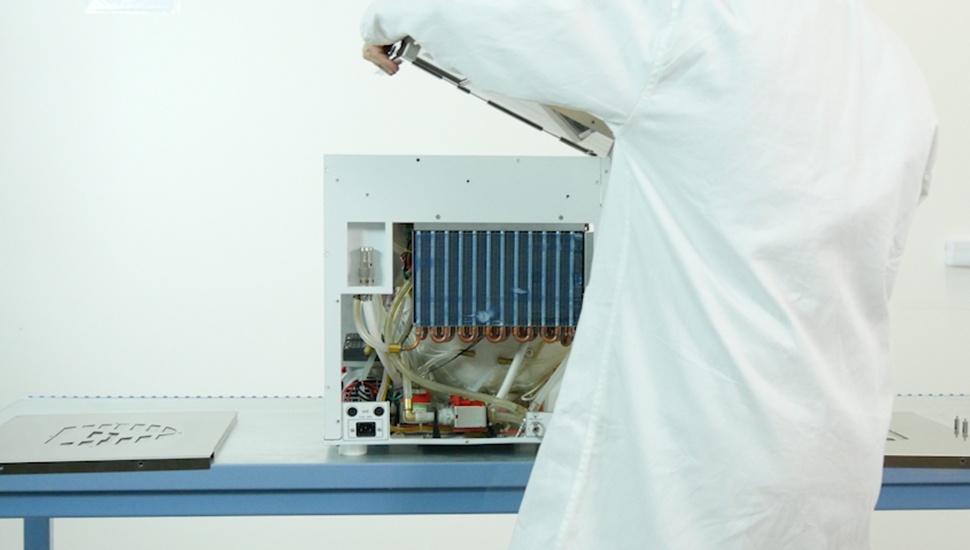

Disassembly of the external upper cover panel
Please pull out the upper cover panel
