CPU REPLACEMENT
Description
If the unit does not follow the setting or programs, this guide will show you how to check and replace the CPU
| Activities: | 6 |
| Difficulty: | Medium |
Necessary Tools
- Phillips Screwdriver
Replacement Parts
- CPU
CPU REPLACEMENT
Step 1
Removing the upper cover panel

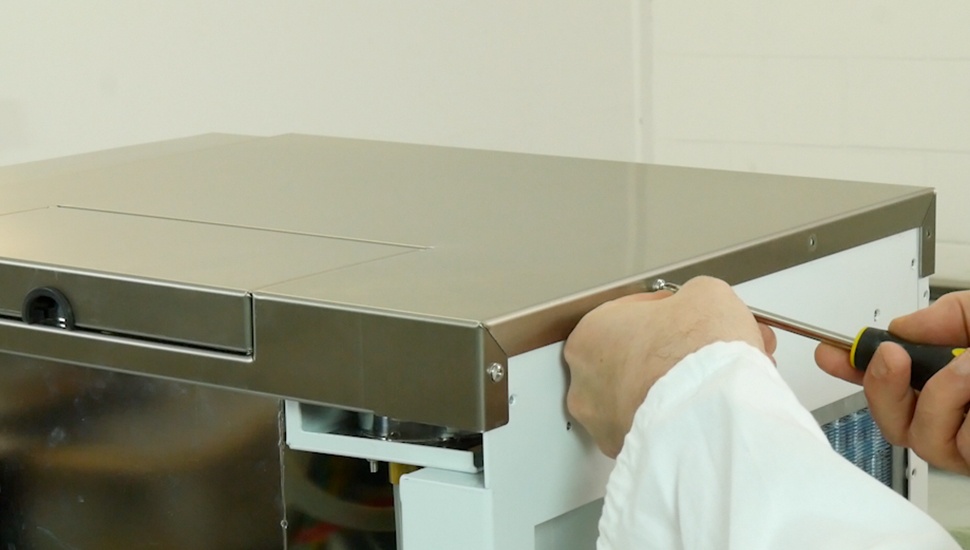

Please unscrew 4 screws of the upper cover plate through Phillips screwdriver
Step 2
Removing the upper cover panel

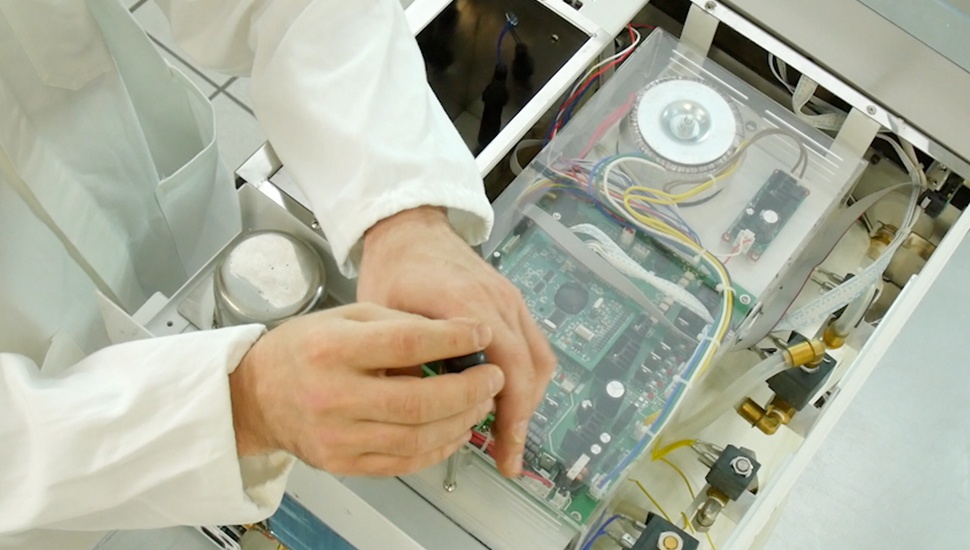

Please remove the 2 screws from the plastic cover for main board using a Phillips screwdriver
Step 3
Removing the upper cover panel

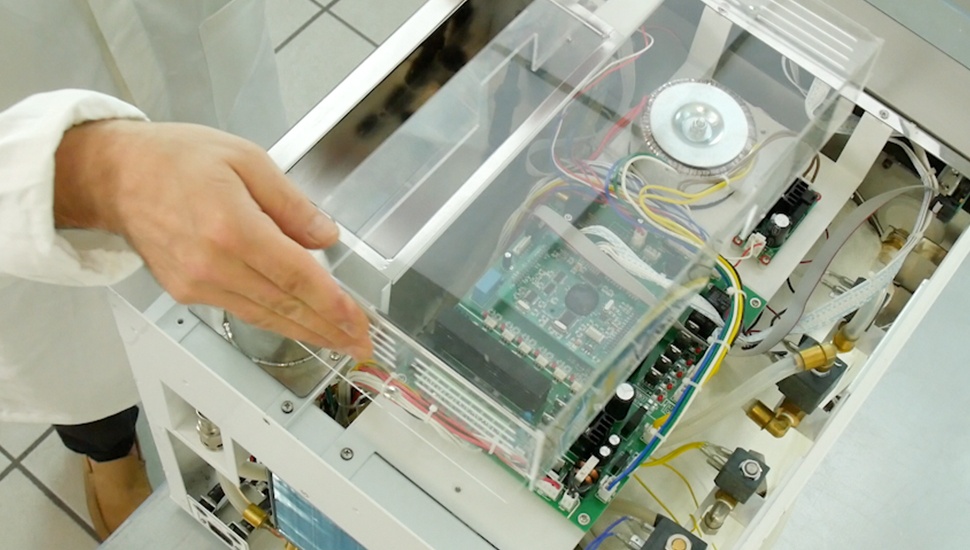

Please remove the plastic cover main board
Step 4
Replacement

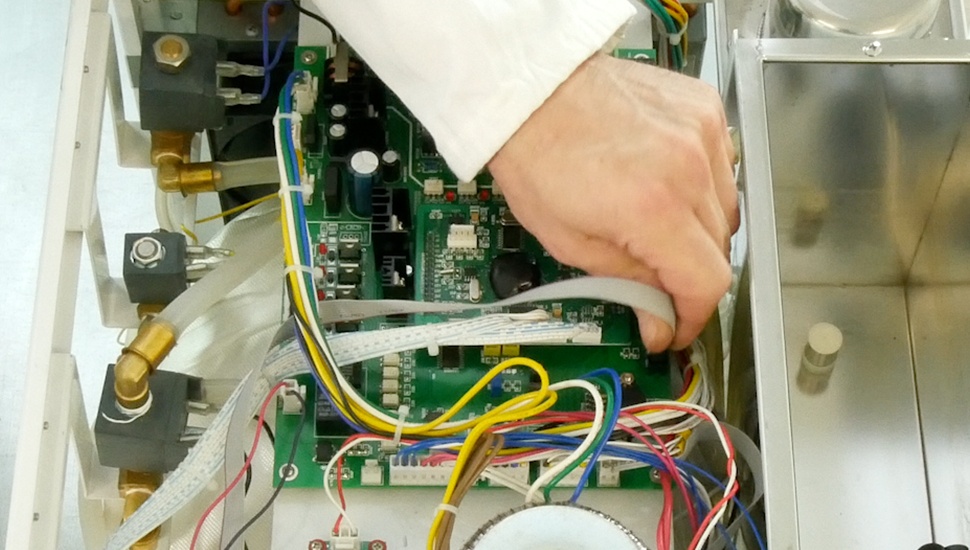

Please disconnect the CPU flat cables
Step 5
Replacement

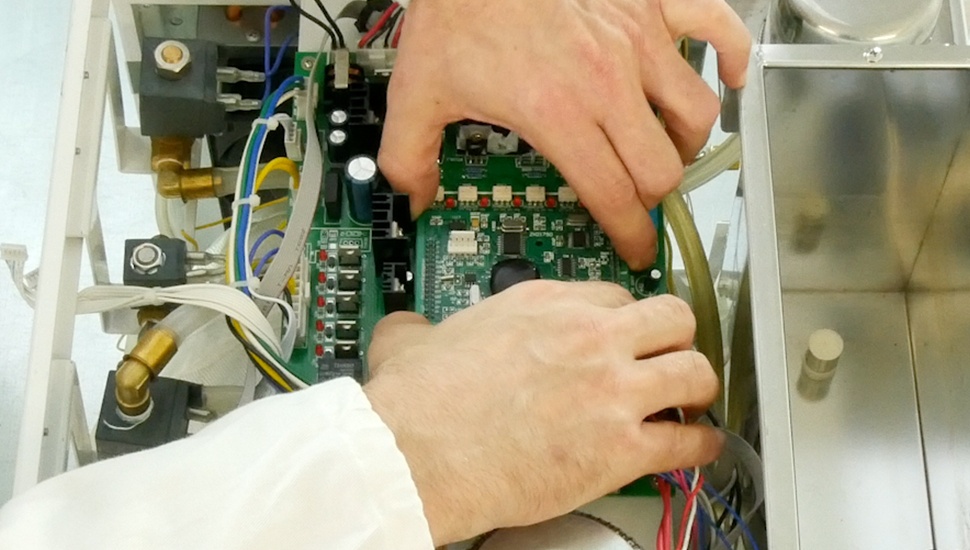

Please pull the CPU out from its socket and replace with the new one
Please insert the new CPU in its socket
Step 6
Reassembly

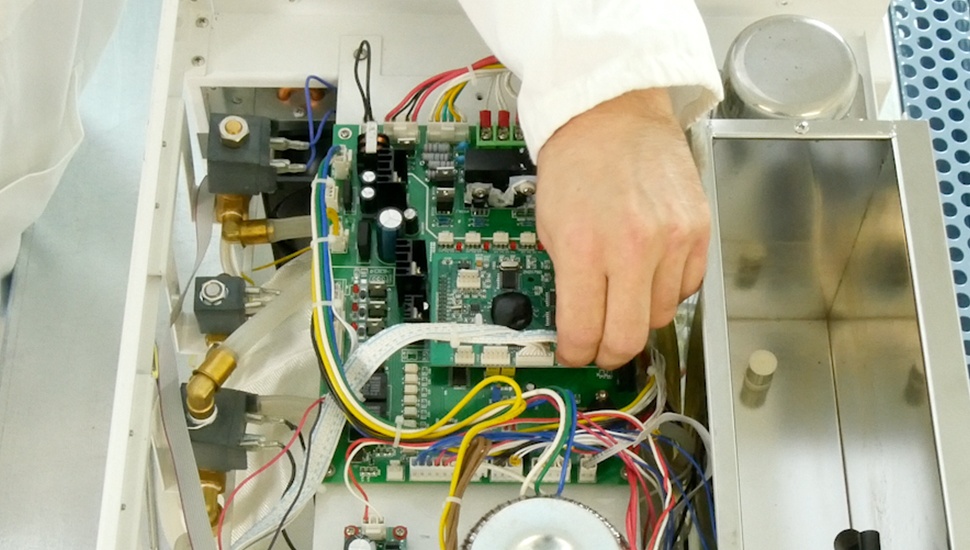

Please connect the CPU flat cables
